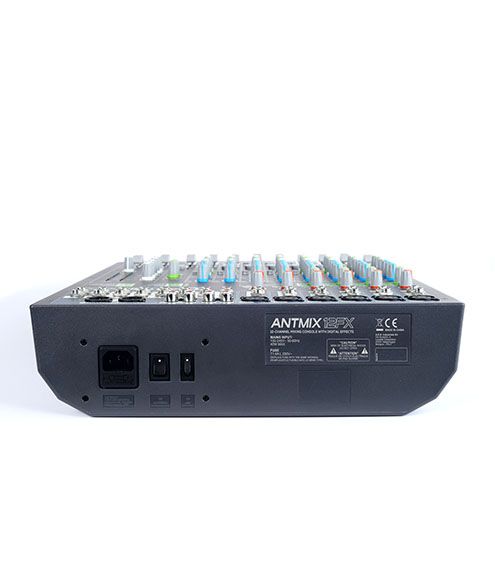

• MONO mic/line inputs4 with compressor

• Mic mono/stereo line inputs2

• Stereo line input2

• Dimensions (W x H x D)340 x 100 x 416 mm

• Weight3,53 Kg

MICROPONE IMPUT

• ConnectorBalanced XLR

• Impedance1.8 kΩ

• Frequency response20~20kHz +/-1dB

• Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted

• Gain0~55dB

• Max input+15dB (balanced)

• Low-cut75Hz 12dB/oct.

• Signal-to-noise ratio<-100 dBr A weighted

• Phantom powering+48V

LINE INPUT

• Connector Balanced6,35mm (1/4”) - unbalanced RCA

• Impedance10 kΩ

• Frequency response20~20kHz +/-1dB

• Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted

• Gain+15dB~-35dB

• Signal-to-noise ratio<-100 dBr weighted A

COMMON SPECIFICATION

• Compressor<7br> only for channels featuring this control)Gain: 0 ---> 9 dB | Soglia: 20 dB ---> 5 dB

• Hum & noise< -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)

• Crosstalk< -80dB (A weighted, full bandwidth, 1 channel and MAIN @ 0dB, other chan- nels @ minimum)

EQUALIZATION AND 2-TRACK IN

• Mono & mono/stereo channels+/-15 dB @12 kHz / +/-15 dB @2.5 kHz /+/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @2.5 kHz / +/-15 dB @80 Hz +/-15 dB @12 kHz / +/-15 dB @2.5 kHz+/- 15 dB @80 Hz

• Stereo channels+/-15 dB @12 kHz / +/-15 dB @80 Hz+/-15 dB @12 kHz +/-15 dB @80 Hz+/-15 dB @12 kHz / +/-15 dB @80 Hz

MICROPHONE INPUT

• Connector2 x unbalanced RCA

• Impedance10 kΩ

• Frequency response20~20kHz +/-1dB

• Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted

• GainOFF~+15dB

STEREO RETURNS

• Connector2 x balanced 6,35mm (1/4”)

• Impedance10 kΩ

• Frequency response20~20kHz +/-1dB

• Distortion (THD + N)<0,03% @ +0dB, 22~22 kHz, A weighted

• GainOFF~+15dB

DSP

• A/D - D/A converters24 bit

• Number of e ects16 for 6FX – 100 for 8Fx and 12FX

• ControlsPresets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX) Presets rotary selector - 16 position (6FX) or 100 position (8FX & 12FX) DFX MUTE footswitch / DFX MUTE switch / DFX button (only 8FX & 12FX)

OUTPUTS

• MAIN MIX connectors2 x TRS 6,35mm (1/4”) connector (XLR in 12FX)

• MAIN MIX max output level+22 dBu XLR balanced (+16 dBu unbalanced)

• MAIN MIX output impedance120 Ω

• GR1-2 in connectors (12FX only)2 x TRS balanced 6,35mm (1/4”)

• GR1-2 max output level (12FX only)+22 dBu XLR balanced (+16 dBu unbalanced)

• GR1-2 output impedance (12FX only)120 Ω

• Headphones connectorUnbalanced TRS 6,35mm (1/4”)

• Headphones impedance30 Ω

• Control room connectors2 x balanced TRS 6,35mm (1/4”)

• Control room impedance120 Ω

• 2-TK connectors2 x unbalanced RCA

• 2-TK impedance1 kΩ
