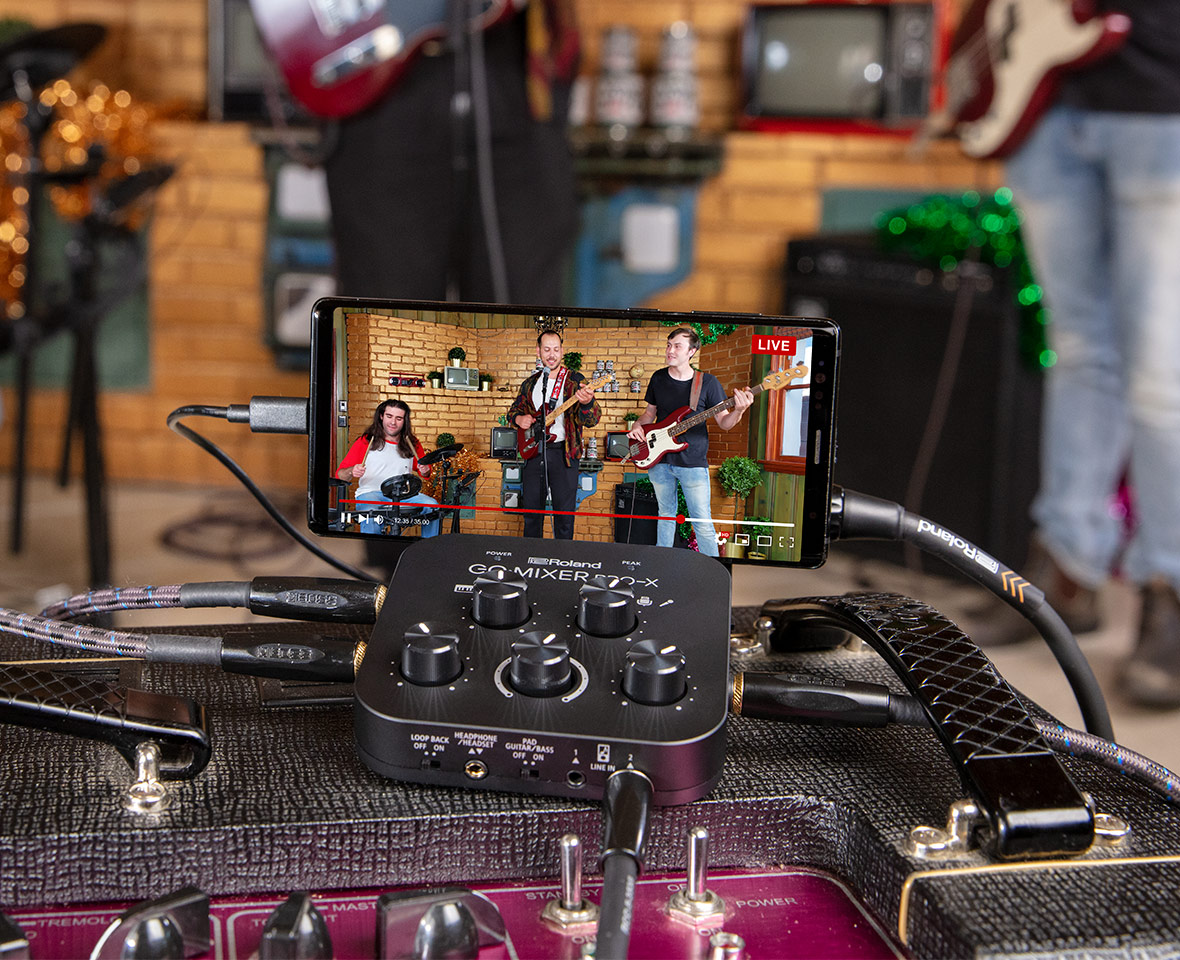

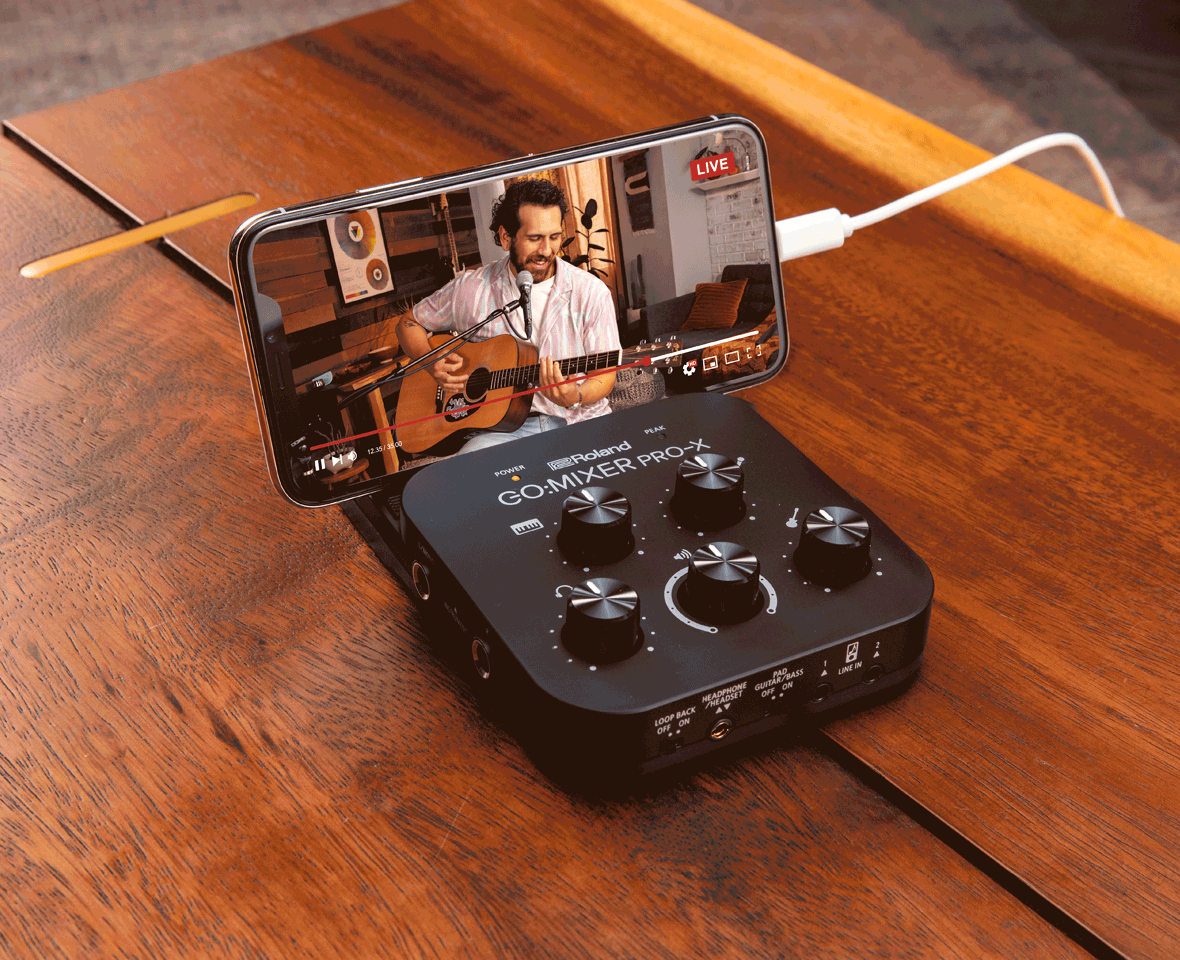

GO MIXER PRO-X Audio Mixer for Smartphones

Your sound matters.

If you create music videos, web shows, podcasts, or livestreams with a phone or tablet, you need GO:MIXER PRO-X. Audio quality can make or break your presentation, and your device’s built-in mic won’t cut it if you really want to impress your listeners and keep them engaged. With GO:MIXER PRO-X, you can connect and mix up to seven audio input sources with studio quality—so you’ll always sound your best no matter where you are.

SPECIFICATIONS

Number of Audio Channels

Input: 11 channels
Output: 3 channels

Connectors

INSTRUMENT (L/MONO, R) jacks: 1/4-inch phone type
LINE IN 1 jack: Stereo miniature phone type
LINE IN 2 jack: Stereo miniature phone type
GUITAR/BASS jack: 1/4-inch phone type (supports high impedance)
SMARTPHONE IN/OUT jack: Stereo Miniature phone type (Stereo, CTIA)
MIC jack: Combo type (XLR, 1/4-inch TRS phone, phantom power DC 48 V, 6 mA max.)
HEADPHONE/HEADSET jack: Stereo Miniature phone type (Stereo, CTIA)
USB port: USB Micro-B type

Controller

INSTRUMENT knob
GUITAR/BASS knob
MIC knob
HEADSET MIC knob
HEADPHONE/SMARTPHONE OUT knob
LOOP BACK switch
PAD GUITAR/BASS switch
PHANTOM POWER switch
BATTERY switch

Indicator

POWER indicator
PEAK indicator

Power Supply

USB Bus Power
Alkaline battery (AAA, LR03) x 4
Rechargeable Ni-MH battery (AAA, HR03) x 4

Current Draw

170 mA

Battery life for continuous use

Alkaline battery: Approximately 4 hours
* When setting the [BATTERY] switch to the "ON" position.
* Differs depending on the conditions of use.

Accessories

Leaflet "Downloading the Owner’s Manual"
Leaflet "USING THE UNIT SAFELY"
Lightning to USB Micro-B type cable
USB Type-C(TM) to USB Micro-B type cable
3.5mm TRRS Audio cable

Compatible Product

Please check the URL for the latest compatible information.
http://roland.cm/gomixerproxcp

SIZE & WEIGHT

Dimensions

104 (W) x 155 (D) x 41 (H) mm
4-1/8 (W) x 6-1/8 (D) x 1-5/8 (H) inches

Weight (excluding batteries and cables)

215 g
8 oz
