FMX-DSLR - Mixer / Audio Adapter For DSLR Cameras

Rs. 18,000.00 Rs. 17,110.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here

Details

Frequency Response

- Main and Unbalanced Output: 20-20,000Hz (+0/-1dB)
- Monitor Output: 50-20,000Hz (-1dB)

Noise Level

Inputs

- Line/Aux Low setting: Max Input Level +22dBu Max Gain -22dB
- Line/Aux Hi setting: Max Input Level +6dBu Max Gain -6dB
- MIC1/MIC2 Low setting: Max Input Level 0dBu Max Gain 0dB
- MIC1/MIC2 Hi setting: Max Input Level -16dBu Max Gain +16dB

Phones Output

Maximum Output Level

Battery Type/Duration

Current Drain

- 40mA nominal (Phantom Power Off)
- 80mA maximum (Phantom Power On)
- Phantom Power Voltage: 48VDC (+/- 2VDC)

Size

2 balanced XLR mic/line inputs
Mini jack stereo microphone input
Mini jack mono AUX input
Stereo mini-jack output for DSLR cameras
Switchable 48V phantom power and limiting
RCA camera returns for audio monitoring
Headphone out with level control
AGC switch for noiseless operation
Camera/tripod mountable
4x AA battery powered
Description

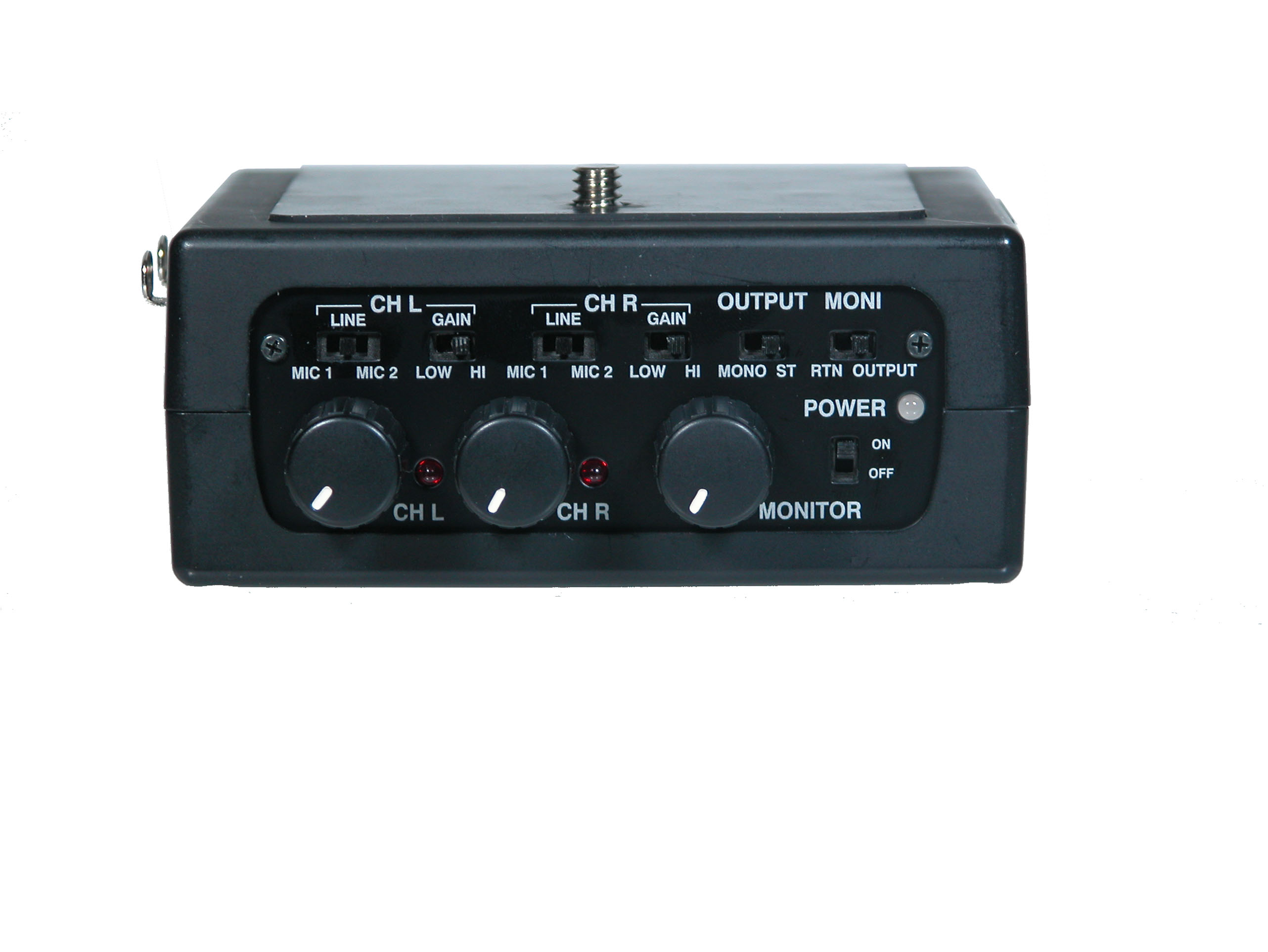

The FMX-DSLR is a Professional Low Noise Audio Mixer for DSLR Cameras. With the same advanced circuitry as our top-of-the-line mixers the FMX-DSLR is designed for the demanding needs of Professional DSLR users. The small, battery operated (4-“AA”) mixer can be attached directly to a camera or tripod with the integral threads. The FMX-DSLR has the following features: AGC switch for noiseless operation, 2 XLR microphone inputs with individual level controls and switchable phantom power, stereo mini jack microphone input, mini jack line level input, stereo mini plug microphone output and headphone output with level control. LED peak level indicators, input return function (RTN) to monitor camera audio and a power switch with power on/low battery LED.
