Description

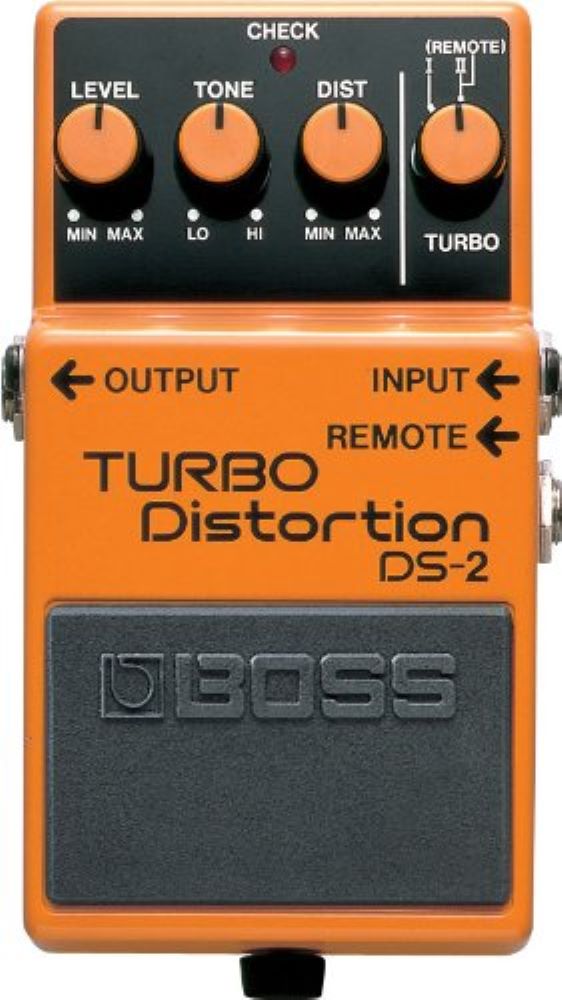

TWO DISTORTIONS FOR THE PRICE OF ONE
The DS-2 Turbo Distortion features twin modes for an expanded range of distortion--taking users from blues-rock rhythms to searing leads at the press of a pedal or twist of a knob.
https://www.bing.com/videos/search?view=detail∣=7A34D00C3B33663F89B87A34D00C3B33663F89B8&q=boss ds-2&shtp=GetUrl&shid=1e3c2ee5-cf8c-4c65-800c-75530fabecb0&shtk=RFMtMiBUVVJCTyBEaXN0b3J0aW9uIFtCT1NTIFNvdW5kIENoZWNrXQ==&shdk=aHR0cDovL3d3dy5ib3NzLmluZm8vZ2xvYmFsL2dlYXIvMjU0LzEyOCBEUy0yIFRVUkJPIERpc3RvcnRpb24gZmVhdHVyZXMgdHdpbiBtb2RlcyBmb3IgYW4gZXhwYW5kZWQgcmFuZ2Ugb2YgZGlzdG9ydGlvbuKAlHRha2luZyB5b3UgZnJvbSBibHVlcy1yb2NrIHJoeXRobXMgdG8gc2VhcmluZyBsZWFkcyBhdCB0aGUgcHJlc3Mgb2YgYSBwZWRhbCBvciB0d2lzdCBvZiBhIGtub2Iu&shhk=rdZJRZR0Mxbmi+2CxNaGBcLxeoJUWZAax+7HqLFm9e8=&form=VDSHOT&shth=OVP.ygZnR-8HJUi74E4Tl7kx4QHgFo
Nominal Input Level
-20 dBu
Input Impedance
1 M ohm
Nominal Output Level
-20 dBu
Output Impedance
1 k ohm
Recommended Load Impedance
10 k ohms or greater
Bypass
Buffered bypass
Controls
TURBO selector knob
DIST knob
TONE knob
LEVEL knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
REMOTE jack: 1/4-inch phone type
DC IN jack
Power Supply
Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
15 mA
Expected battery life under continuous use
Carbon: Approx. 25.5 hours
Alkaline: Approx. 42 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Owner's manual
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)
Options (sold separately)
AC adaptor: PSA series
SIZE AND WEIGHT
Width
73 mm
2-7/8 inches
Depth
129 mm
5-1/8 inches
Height
59 mm
2-3/8 inches
Weight (including battery)
395 g
14 oz
