PRECISE TONAL CONTROL

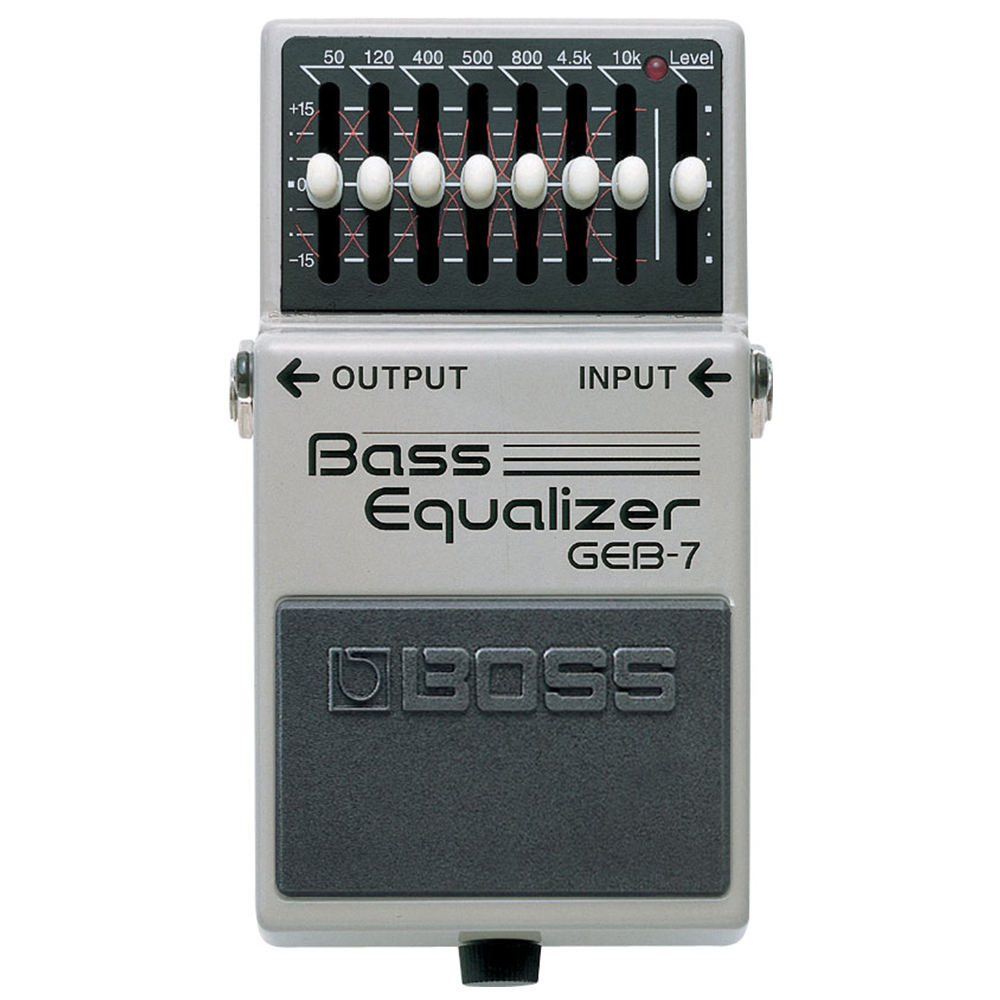

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.
Specifications
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohm or greater |
| Bypass | Buffered bypass |
| Controls | Level Control knob |
| Equalizer Control knob | |
| 50, 120, 400, 500, 800, 4.5 k, 10 kHz | |
| Pedal switch | |
| Indicator | CHECK indicator (Serves also as battery check indicator) |
| Connectors | INPUT jack: 1/4-inch phone type |
| OUTPUT jack: 1/4-inch phone type | |
| DC IN jack | |
| Power Supply | Carbon-zinc battery (9 V, 6F22) Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 16 mA |
| Accessories | Owner's Manual |
| Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") | |
| Carbon-zinc battery (9 V, 6F22) |
SIZE AND WEIGHT
| Width | 73 mm |
| 2-7/8 inches | |
| Depth | 129 mm |
| 5-1/8 inches | |
| Height | 59 mm |
| 2-3/8 inches | |
| Weight (including battery) | 440 g |
1 lb* 0 dBu = 0.775 Vrms*The specifications are subject to change without notice.
The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.
With a frequency range from 50Hz to 10kHz, the GEB-7 is ideal for any bass guitar, including 5-string basses. Seven bands of EQ are available, affording greater control over the crucial midrange.
