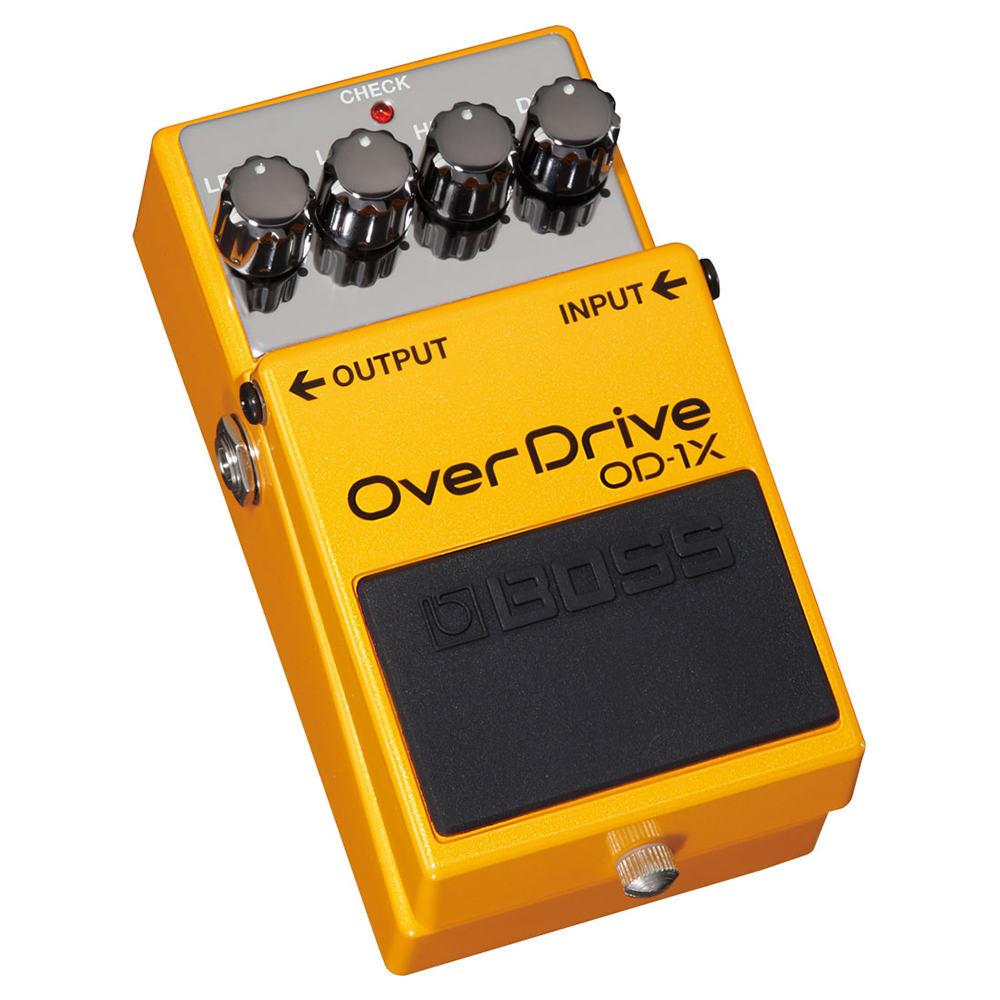

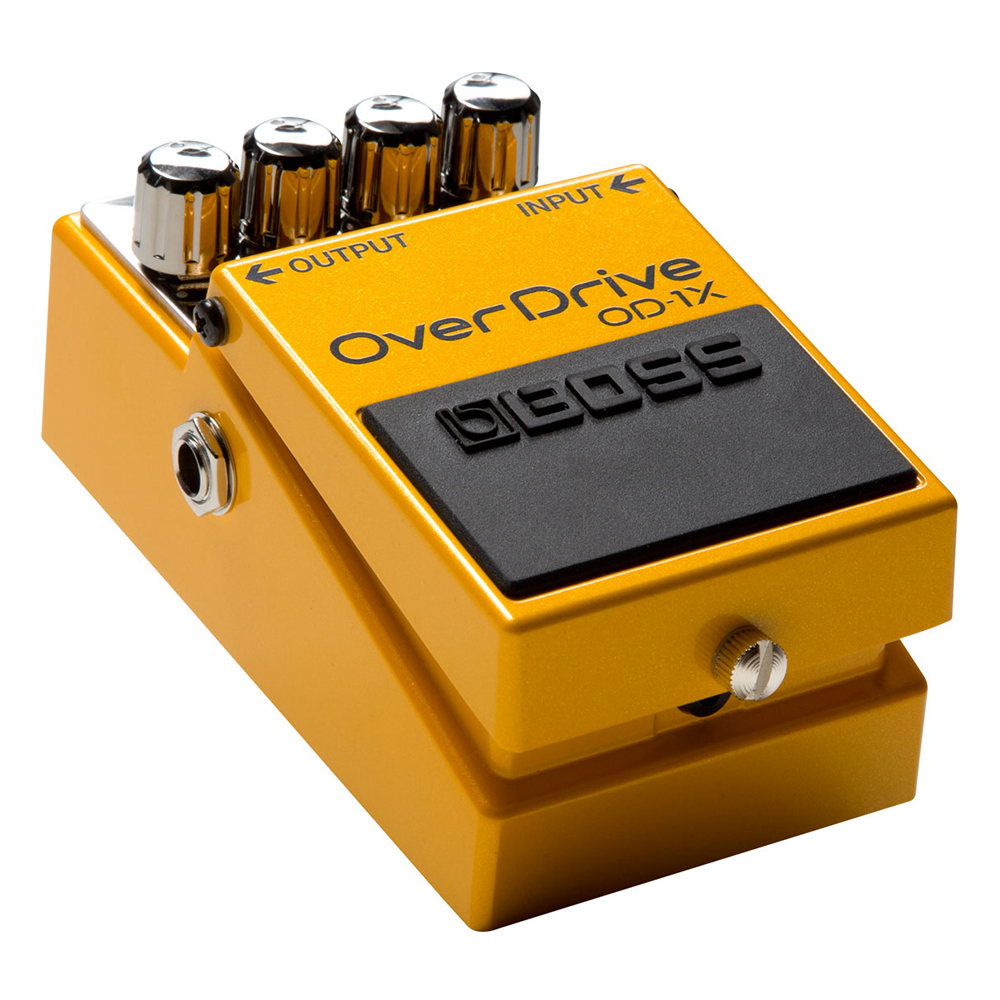

OD-1X OverDrive

Description

SPECIFICATIONS

Nominal Input Level                            -20 dBu

Input Impedance                                1 M ohm

Nominal Output Level                         -20 dBu

Output Impedance                             1 k ohm

Recommended Load Impedance         10 k ohms or greater

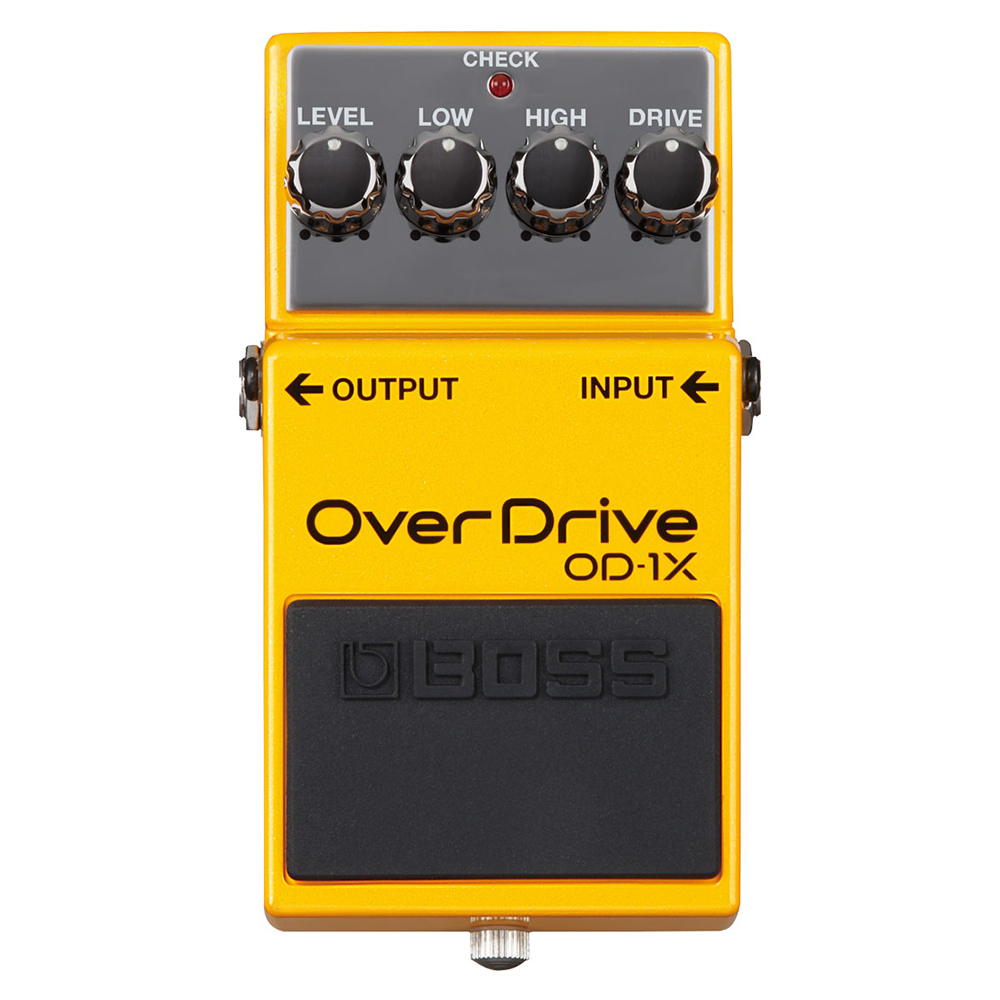

Controls                                            Pedal switch

LEVEL knob

LOW knob

HIGH knob

DRIVE knob

Indicator                                            CHECK indicator (Serves also as battery check indicator)

Connectors                                        INPUT jack

OUTPUT jack

AC adaptor jack (DC 9 V)

Power Supply                                     Alkaline battery (9V, 6LR61) or Carbon-zinc battery (9V, 6F22)

AC adaptor (sold separately)

Accessories                                       Owner's Manual

Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTE," and "Information")

Alkaline battery (9V, 6LR61)

Option (sold separately)                     AC adaptor (PSA series)

SIZE AND WEIGHT

Width                                                 73 mm

2-7/8 inches

Depth                                                129 mm

5-1/8 inches

Height                                               59 mm

2-3/8 inches

Weight                                               450 g

1 lbs.* 0 dBu = 0.775 Vrms
