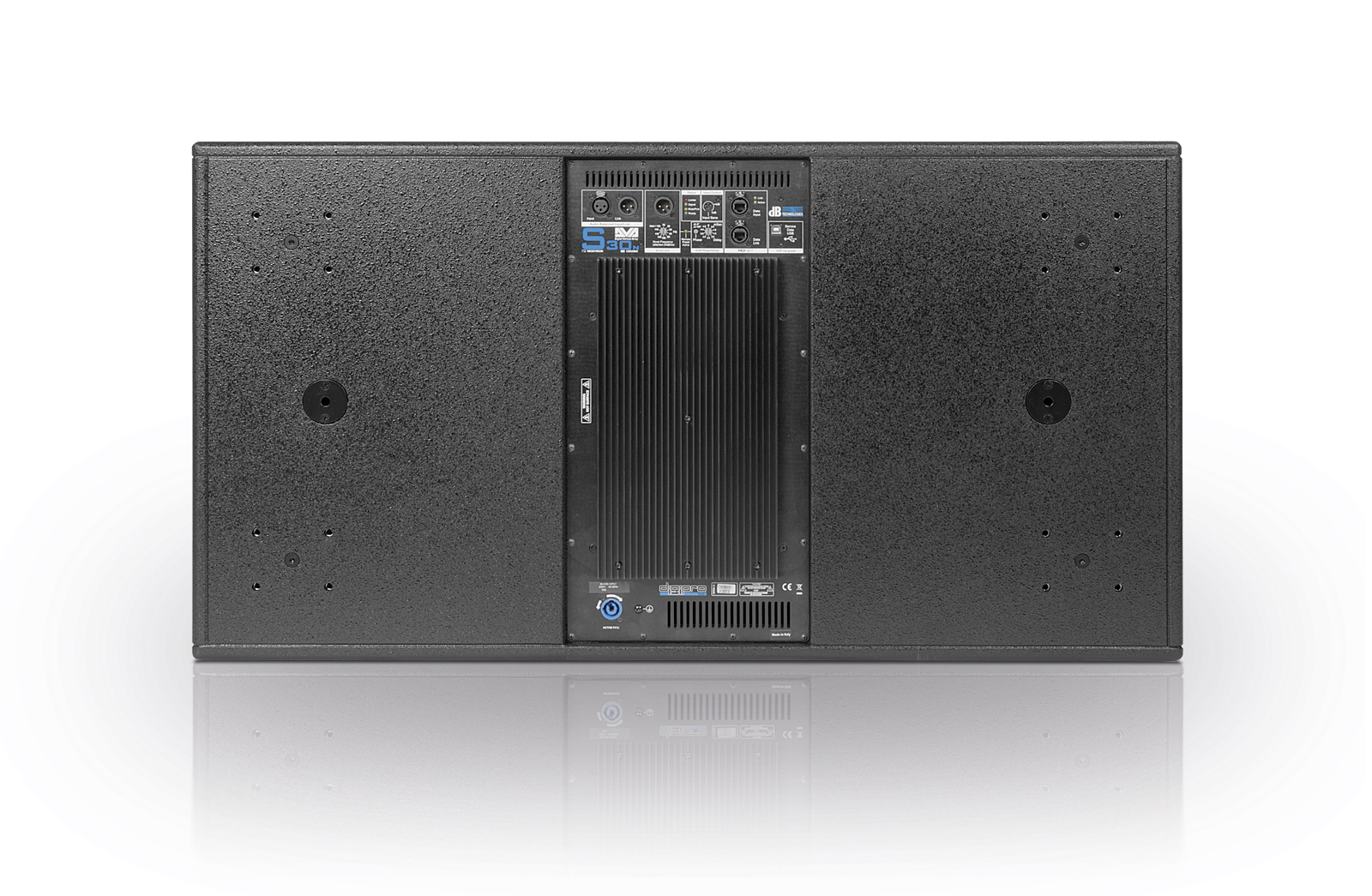

dB Technologies DVA S30N

Technical Data

Speaker Type

Active Bassreflex-Horn Subwoofer

Acoustical data

Frequency Response [+/- 3dB]

30 - 120 Hz

Max SPL

141 dB

Directivity

Omnidirectional, Cardiod Option with DSP setup

LF

2x18 "

Voice Coil LF

4 "

Amplifier

Amp Technology

Digipro® G2

Amp Class

Class D

Power Supply

3 kW SMPS

LF Amp

3000 W RMS

Cooling

Convection

Processor

Controller

DSP 56 bit

AD/DA Converter

DSP 24 bit/48 kHz

System Presets

X-Over,Delay

Phase

0, 180 °

Limiter

RMS, Peak, Thermal

Delay Option

0-4.5 ms internal

Crossover Frequency LF-MF

75-120Hz | steps of 5Hz

LF-Xover out slope

24 dB/Octave

Mechanics

Housing

Multiplex plywood

Housing Design

Rectangular

Handles

4x Per Side

Accessory

Dolly, Wheels 100mm,
Dust Cover, Rain Cover

Rigging Points

2xPick Points on top to fix
DRK10/20 rigging frames

Width

1100 mm (44 in)

Height

580 mm (23.2 in)

Depth

720 mm (28.8 in)

Weight

83 kg (182.98 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
