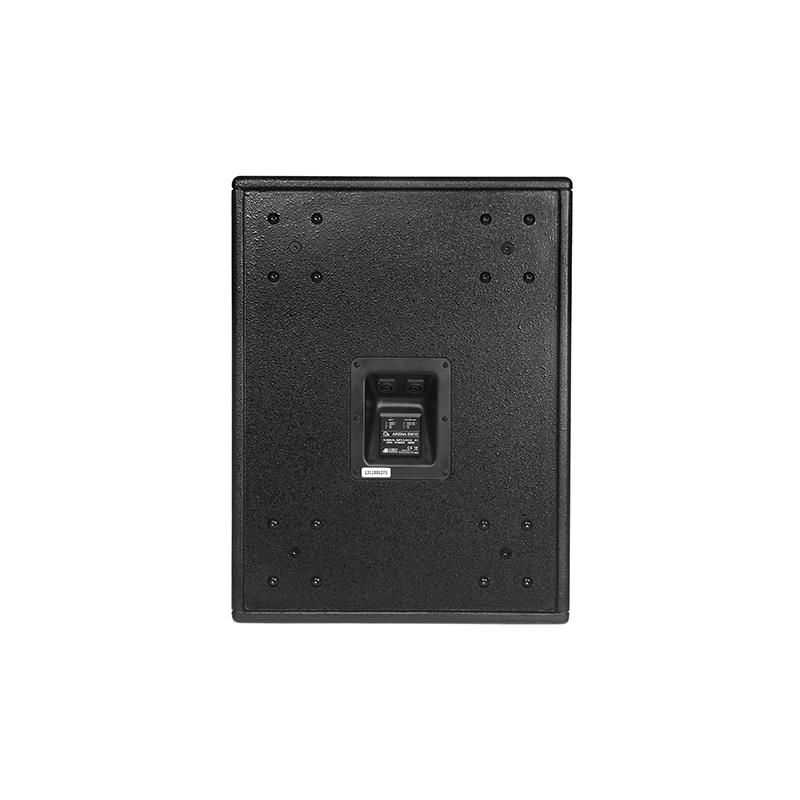

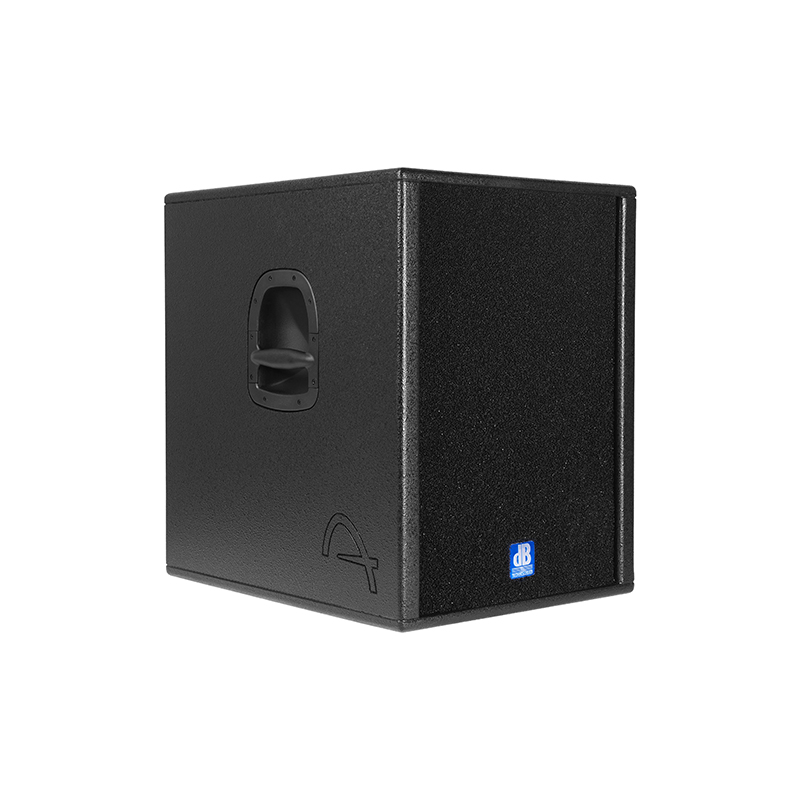

dB Technologies Passive Subwoofer ARENA SW15

Technical Data

Speaker Type

Passive Subwoofer

Acoustical data

Nominal Power Rating

500 W/RMS

Program Power Rating

1000 W

Impedance

8 Ohms

Frequency Response [+/- 3dB]

40 - 150 Hz

Max SPL

130 dB

LF

15 “

Voice Coil LF

3 “

Internal Crossover

YES

Crossover Frequency (passive)

150 Hz

Input

Signal Input

1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output

1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

Housing

Multiplex plywood

Width

460 mm (18.4 in)

Height

600 mm (24 in)

Depth

600 mm (24 in)

Weight

34 kg (74.96 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
