Zoom F2 FIELD RECORDER & LAVALIER MIC

( 0 Reviews )
Rs. 20,198.00 Rs. 17,113.00

Inclusive of all GST

  1. INPUT LED

    This lights according to the input level through the INPUT jack.

  2. BATT LED

    The color of the light changes according to the remaining battery charge.

  3. OUTPUT VOLUME −/+ CONTROL

    Use these to adjust the headphone output volume.

  4. REC/PLAY LED

    This lights during recording and playback.

  5. POWER/HOLD SWITCH

    Use this to turn the power ON/OFF and to disable button operation.

  6. REC BUTTON

    Use this to start/stop recording.

  7. TRANSPORT CONTROLS

    Use to play and stop recorded files.

  8. DC 5V (USB TYPE-C) CONNECTOR

    Connect to your computer with a USB-C cable to transfer files and adjust settings using the F2 Editor software. This port can also be used to provide power to the F2/F2-BT.

  9. OUTPUT JACK

    Connect headphones here.

  10. INPUT JACK

    Connect a lavalier mic here.

  11. BELT CLIP

  12. MICROSD CARD SLOT

    Insert a microSD card up to 512 Gb

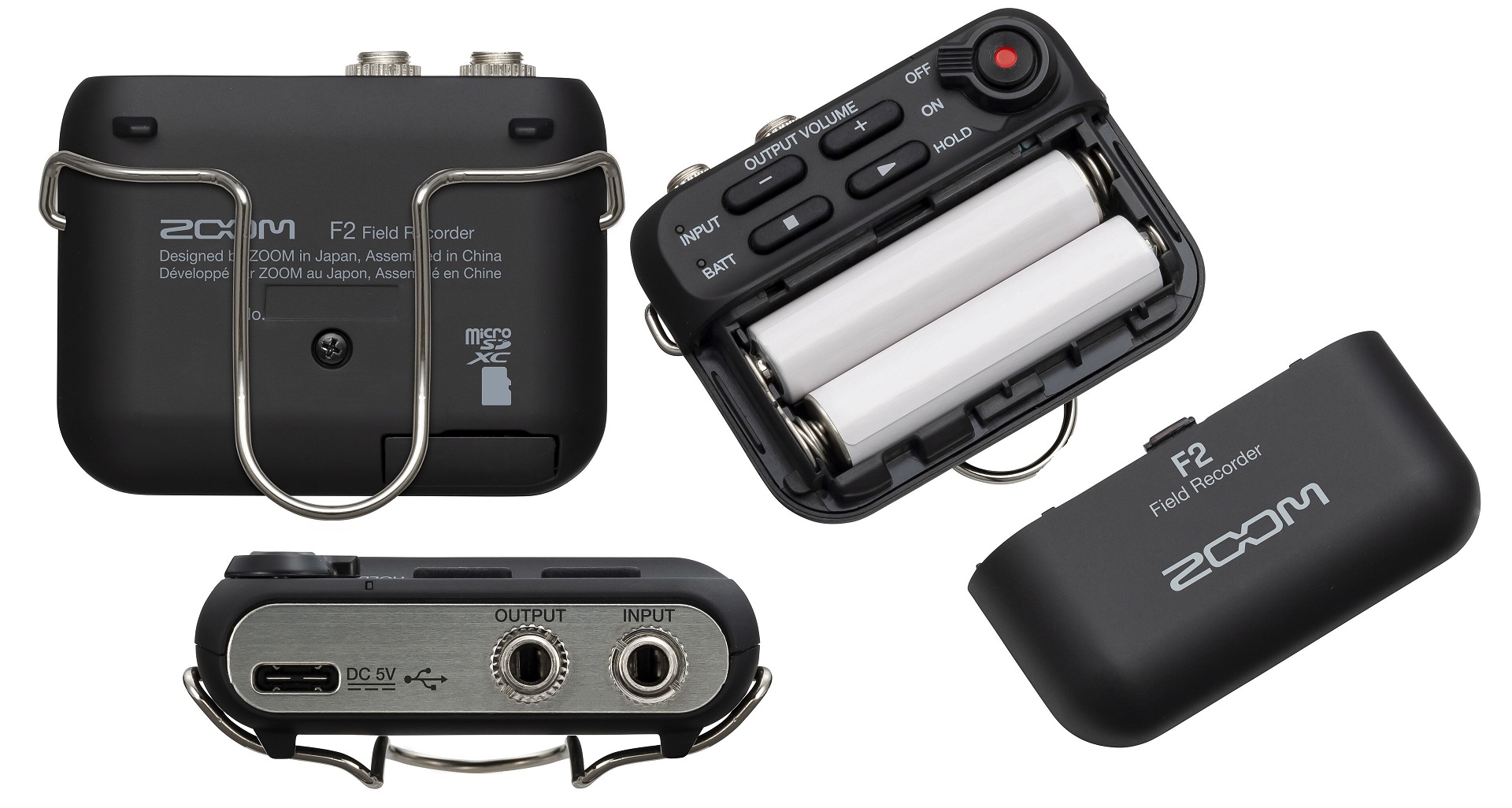

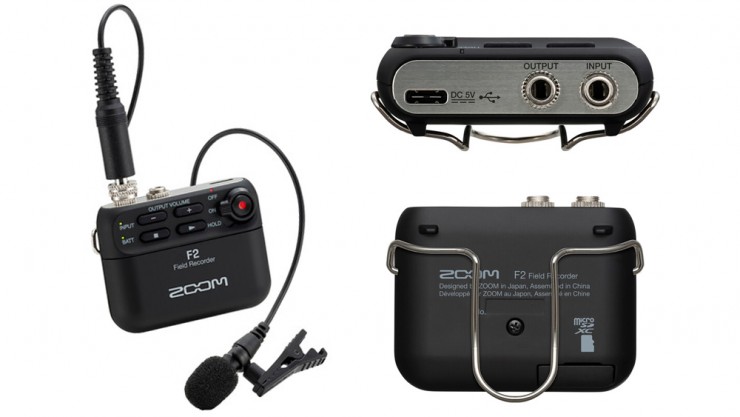

Tour the F2

SPECS

F2/F2-BT

INPUT

CONNECTOR: 3.5 mm stereo mini (with screw lock) Supports plug-in power (2.5 V)
INPUT GAIN: None (dual AD conversion system)
INPUT IMPEDANCE: 2 kΩ or more
MAXIMUM INPUT LEVEL: −5.5 dBu

OUTPUT

CONNECTOR: 3.5 mm stereo mini (with screw lock)
MAXIMUM OUTPUT LEVEL: 20 mW + 20 mW (into 32Ω load)

RECORDING MEDIA

CARDS COMPATIBLE WITH MICROSD/MICROSDHC/MICROSDXC SPECIFICATIONS (CLASS 4 OR HIGHER, 512 GB MAXIMUM)

RECORDING FORMAT

WAV: 44.1kHz/32-bit float, 48kHz/32-bit float Mono, BWF format supported

USB

USB TYPE-C
MASS STORAGE OPERATION USB 2.0 High Speed
PC APP OPERATION USB 2.0 High Speed

POWER

2 AAA BATTERIES (ALKALINE, LITHIUM OR RECHARGEABLE NIMH BATTERIES) AC ADAPTER (ZOOM AD-17): DC 5 V/1 A

MISCELLANEOUS

CONTINUOUS RECORDING TIME WHEN USING LAVALIER MIC (48KHZ/32-BIT FLOAT): Alkaline batteries: about 14 hours
  NiMH batteries (750 mAh): about 10 hours Lithium batteries: about 18 hours
  • The above values are approximate.
EXTERNAL DIMENSIONS: 57.5 mm (W) × 46.4 mm (H) × 22.4 mm (D)
WEIGHT (MAIN UNIT ONLY): 32 g

LMF-2

LAVALIER MIC

CONNECTOR: 3.5 mm stereo mini (with screw lock)
DIRECTIONALITY: Omnidirectional
SENSITIVITY: –32 dB/Pa at 1 kHz
MAXIMUM SOUND PRESSURE INPUT: 115 dB SPL
CABLE LENGTH: 160 cm

Details

F2 FEATURES

  • Light and compact audio recorder
  • 32-Bit Float recording for full dynamic range and clip free recording
  • No gain adjustment necessary
  • Records 44.1kHz/32-bit float or 48kHz/32-bit float audio files
  • Rec Hold function to avoid accidental operation of buttons
  • 1/8" Mic In mini phone jack with Plug-in power (2.5V)
  • Stereo ⅛" Phone/Line Output jack with dedicated volume control
  • 80 Hz low cut filter
  • High precision internal clock to avoid audio and video syncing issues
  • Records directly to micro SD, SDHC, and SDXC cards up to 512 GB
  • USB-C for connection to F2 Editor for settings
  • Runs on only 2 standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AC adapter (AD-17)
  • Up to 15 hours of operation (14 hours on the F2-BT) with two AAA alkaline batteries
