OD-200 Hybrid Drive

Simply Sophisticated

With the 200 series, BOSS introduces a new generation of pedals that pack advanced sound and versatility into a streamlined size that saves space on your board. Grab-and-go controls and multi-function switches make operation easy and intuitive, while onboard memories allow you to store multiple setups for instant recall. All 200 series pedals feature premium audio quality with 32-bit internal processing and offer support for external control via footswitches, an expression pedal, or MIDI.

The OD-200 Hybrid Drive brings next-level sound, feel, and flexibility to overdrive and distortion, combining decades of BOSS tone expertise with innovative technologies. Powered by hybrid analog/digital circuitry, this dream pedal delivers any drive tone you can imagine via 12 primary modes, 15 boost types, series/parallel gain paths, and more. There’s even an advanced gate on board, ideal for both eliminating noise and adding tightness to high-gain drive tones.

Version 1.1 Update: User Memory Expansion

The free Version 1.1 software update brings increased flexibility to the BOSS 200 series, greatly expanding the onboard memory capacity for storing and recalling sounds. There are now 128 user setups available. Setups can also be recalled directly via MIDI program change.

The Version 1.1 update is available in the Downloads section for each 200 series pedal.



Specifications

Sampling Frequency

96 kHz

AD/DA Conversion

32 bits

Processing

32-bit floating point

Drive Circuit

Analog + Digital

Modes

12 modes
OVERDRIVE, BLUES, SCREAM, CNTR OD, X-DRIVE, DIST, X-DIST, STACK DRIVE, FAT DIST, BROWN, X-METAL, FUZZ

Memory

127 + Manual

Nominal Input Level

INPUT: -10 dBu

Maximum Input Level

INPUT: +7 dBu

Input Impedance

INPUT: 1 M ohm

Nominal Output Level

OUTPUT: -10 dBu

Maximum Output Level

OUTPUT: +7 dBu (Load Impedance: 220 k ohms or greater)

Output Impedance

OUTPUT: 1 k ohms

Recommended Load Impedance

OUTPUT: 10 k ohms or greater

Bypass

Buffered bypass

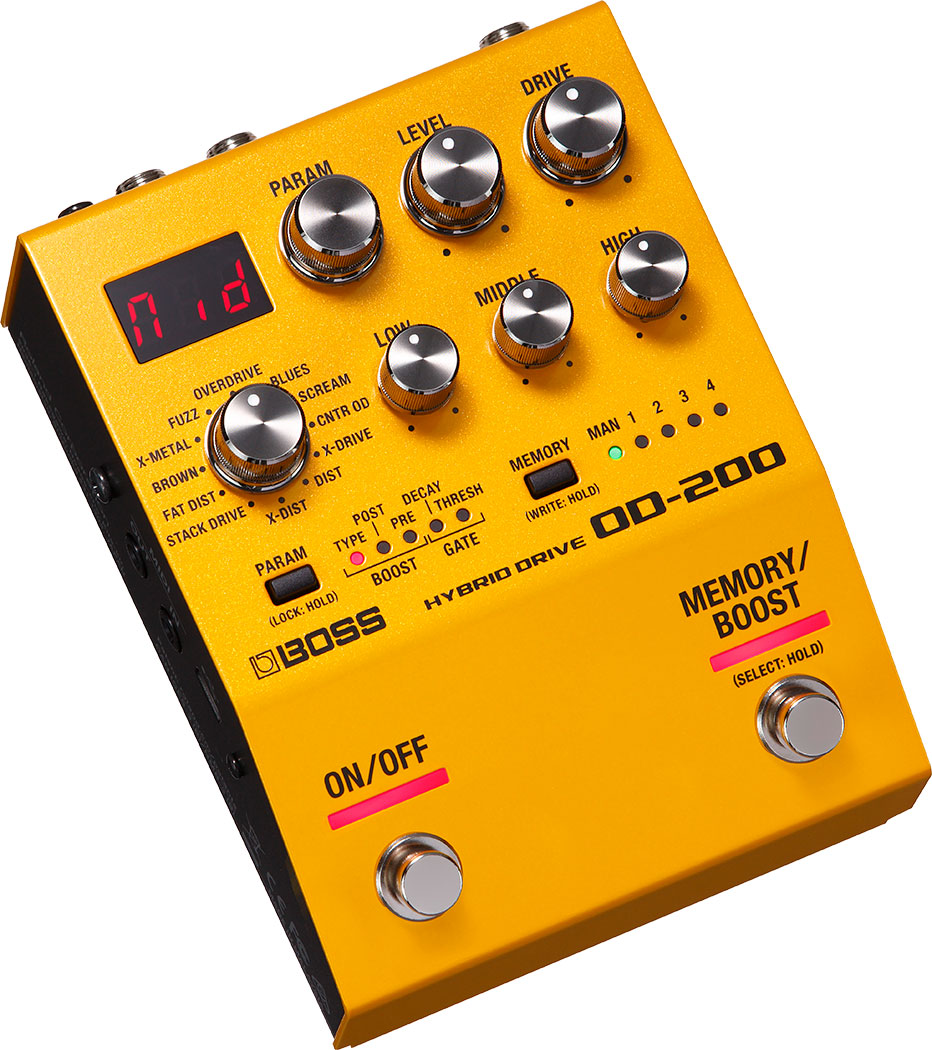

Controls

ON/OFF switch, MEMORY/BOOST switch
MODE knob, DRIVE knob, LEVEL knob, PARAM knob, LOW knob, MIDDLE knob, HIGH knob
PARAM button, MEMORY button

Display

7 segments, 3 characters (LED)

Indicator

PARAM indicator, MEMORY (MAN, 1--4) indicators

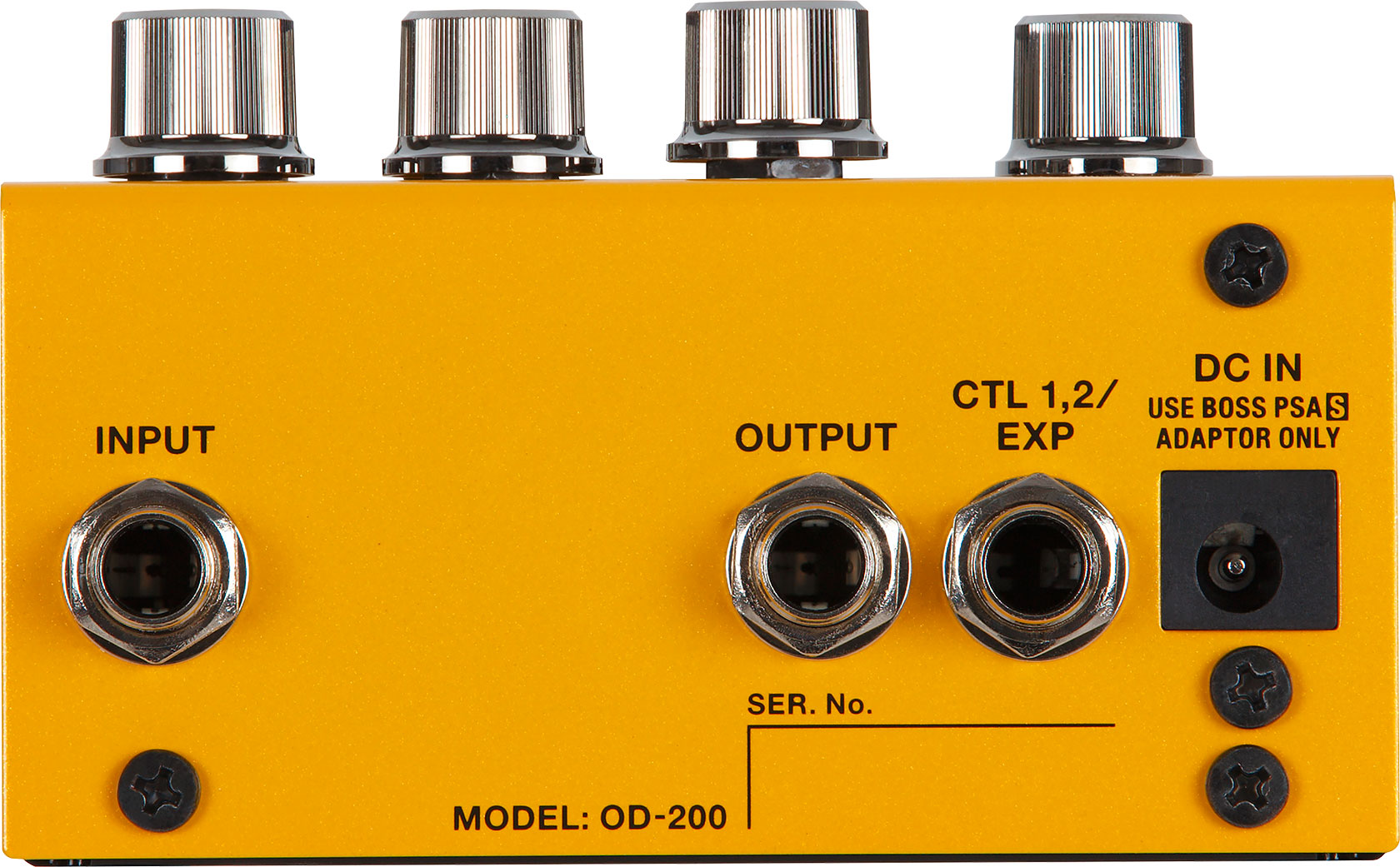

Connectors

INPUT jack, OUTPUT jack: 1/4-inch phone type
CTL 1, 2/EXP jack: 1/4-inch TRS phone type

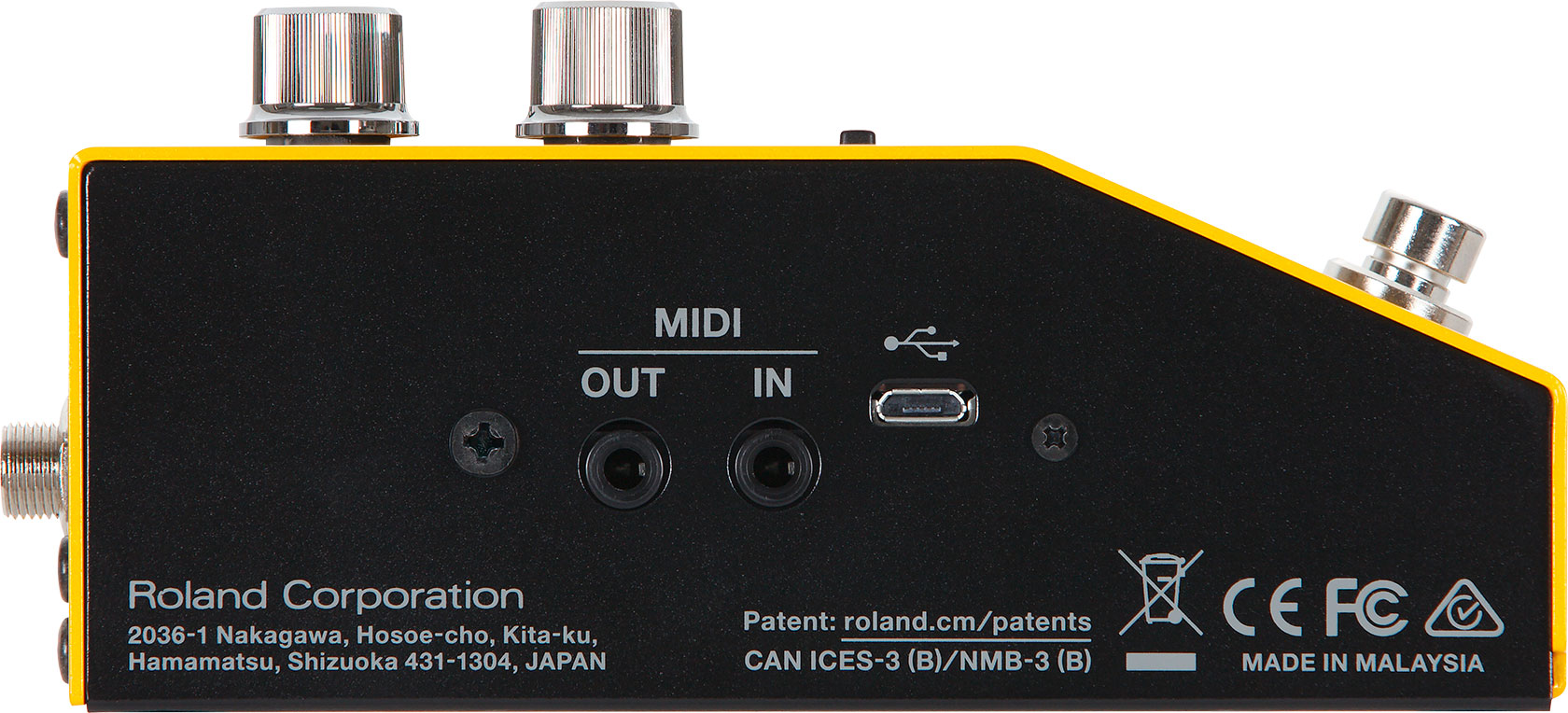

MIDI (IN, OUT) jacks: Stereo miniature phone type
DC IN jack
USB port: USB micro B-type (program update only)

Power Supply

Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)

Current Draw

220 mA

Expected Battery Life Under Continuous Use

Alkaline: Approx. 6 Hours
* These figures will vary depending on the actual conditions of use.

Accessories

Owner's Manual
Leaflet "USING THE UNIT SAFELY"
Alkaline battery (AA, LR6) x 3
Rubber foot x 4

Options (sold separately)

AC adaptor: PSA-S series
Footswitch: FS-5U
Dual footswitch: FS-6, FS-7
Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5
MIDI/TRS connecting cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535

Size and Weight

Width

101 mm
4 inches

Depth

138 mm
5-7/16 inches

Height

63 mm
2-1/2 inches

Height (including rubber foot)

65 mm
2-9/16 inches

Weight

600 g
1 lb 6 oz

Weight (including battery)

670 g
1 lb 8 oz
