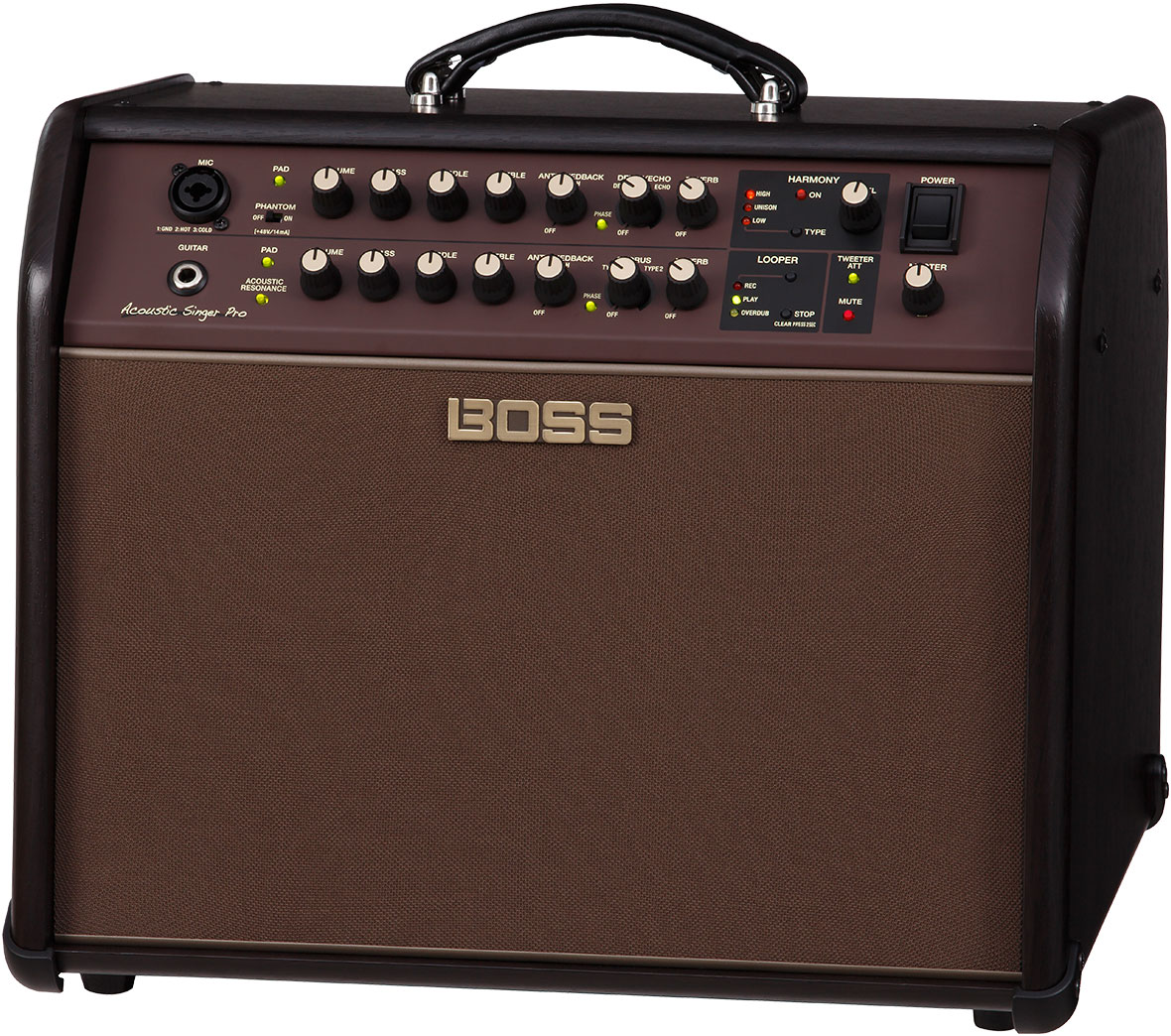

Acoustic Singer Pro Acoustic Amplifier

THE ACOUSTIC STAGE AMP REDEFINED

The Acoustic Singer Pro takes the acoustic stage amp to new levels of sound quality and creative versatility. Incorporating BOSS’s latest advancements in amplifier research, this compact powerhouse produces rich, vibrant sound with unmatched punch and clarity. Independent channels are provided for acoustic guitar and vocal, and each is equipped with discrete analog input circuits and three-band EQ for studio-quality sound. And with additional features such as Acoustic Resonance, looping, automatic vocal harmonies, effects, and much more, the Acoustic Singer Pro gives acoustic musicians everything they need to deliver inspiring and impactful live performances.

SPECIFICATIONS

Rated Power Output

120 W (Woofer: 100 W, Tweeter: 20 W)

Nominal Input Level

MIC INPUT: -33 dBu (2.5 k ohms)
GUITAR INPUT: -10 dBu (5 M ohms)
AUX INPUT: -8 dBu (10 k ohms)

Speaker

20 cm (8 inches) Woofer x 1, 2.5 cm (1 inch) Dome Tweeter x 1

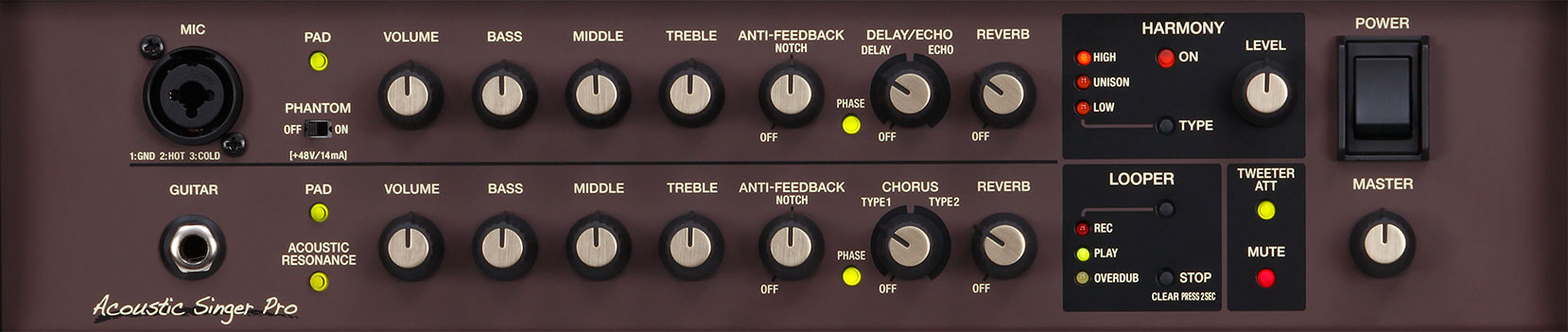

Controls

POWER switch
MASTER knob
TWEETER ATT button
MUTE button

[MIC]
PAD button
PHANTOM switch
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
DELAY/ECHO knob
REVERB knob

[GUITAR]
PAD button
ACOUSTIC RESONANCE button
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
CHORUS knob
REVERB knob

[HARMONY]
ON button
TYPE button
LEVEL knob

[LOOPER]
LOOPER button
STOP/CLEAR button

[AUX]
LEVEL knob

[DI/LINE OUT]
MIC/MIX: OUT SELECT switch
GUITAR/MIX: OUT SELECT switch

Indicators

TWEETER ATT
MUTE

[MIC]
PAD
PHASE

[GUITAR]
PAD
ACOUSTIC RESONANCE
PAHSE

[HARMONY]
ON
HIGH
UNISON
LOW

[LOOPER]
REC
PLAY
OVERDUB

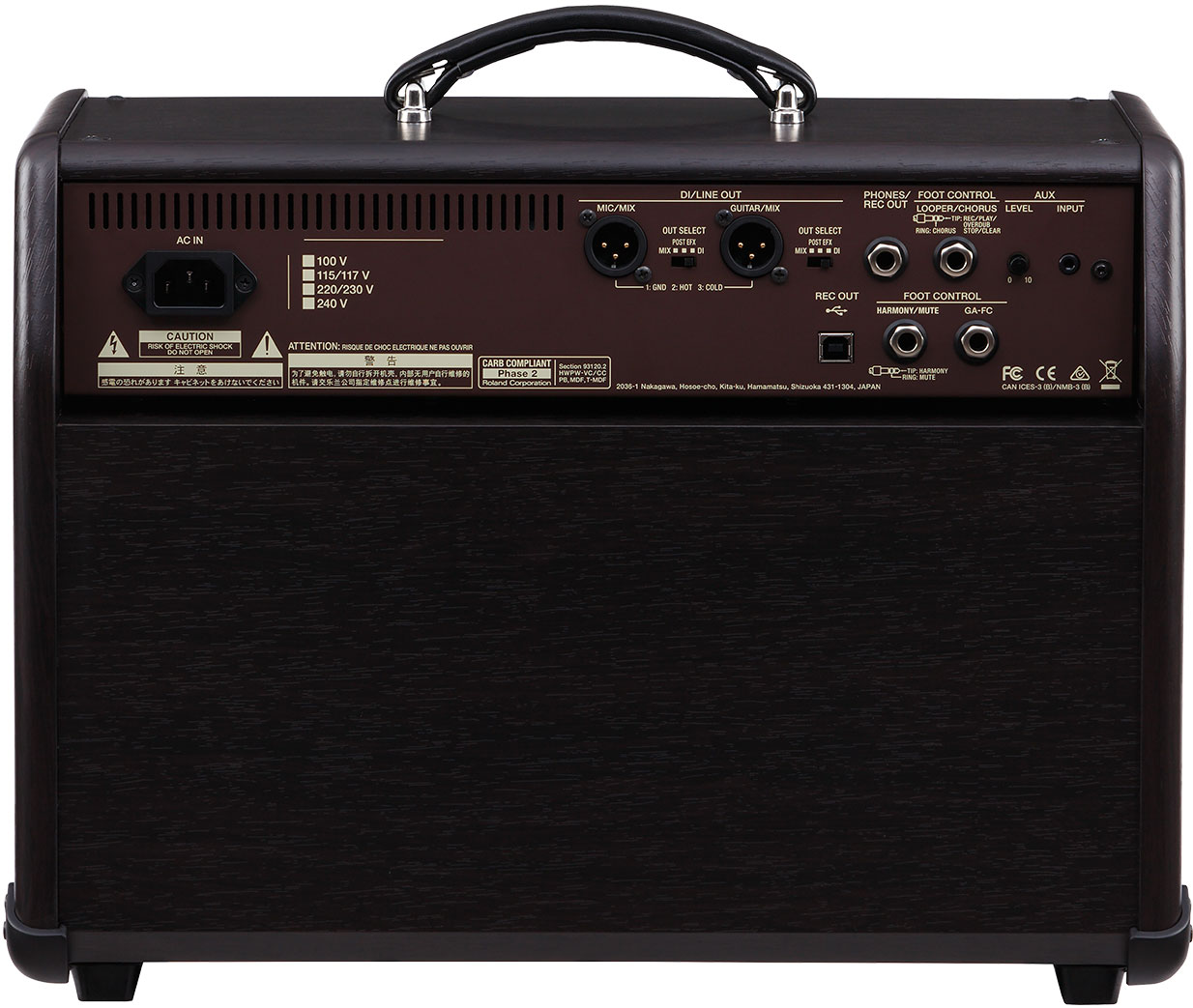

Connectors

MIC jack: Combo type (XLR, 1/4-inch TRS phone type)
GUITAR jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
PHONES/REC OUT jack: Stereo 1/4-inch phone type
DI/LINE OUT MIC/MIX jack: XLR type
DI/LINE OUT GUITAR/MIX jack: XLR type
FOOT CONTROL LOOPER/CHORUS jack: 1/4-inch TRS phone type
FOOT CONTROL HARMONY/MUTE jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
USB port: USB B type
AC IN jack

Power Consumption

50 W

Accessories

Owner's manual
Power cord
GA-FC sticker
Footswitch

Options (sold separately)

Footswitch: FS-5U, FS-6, FS-7
Expression pedal: FV-500L、FV-500H、Roland EV-5
GA FOOT CONTROLLER: Roland GA-FC

SIZE AND WEIGHT

Width

417 mm
16-7/16 inches

Depth

330 mm
13 inches

Height

358 mm
14-1/8 inches

Weight

14.5 kg
32 lbs oz
