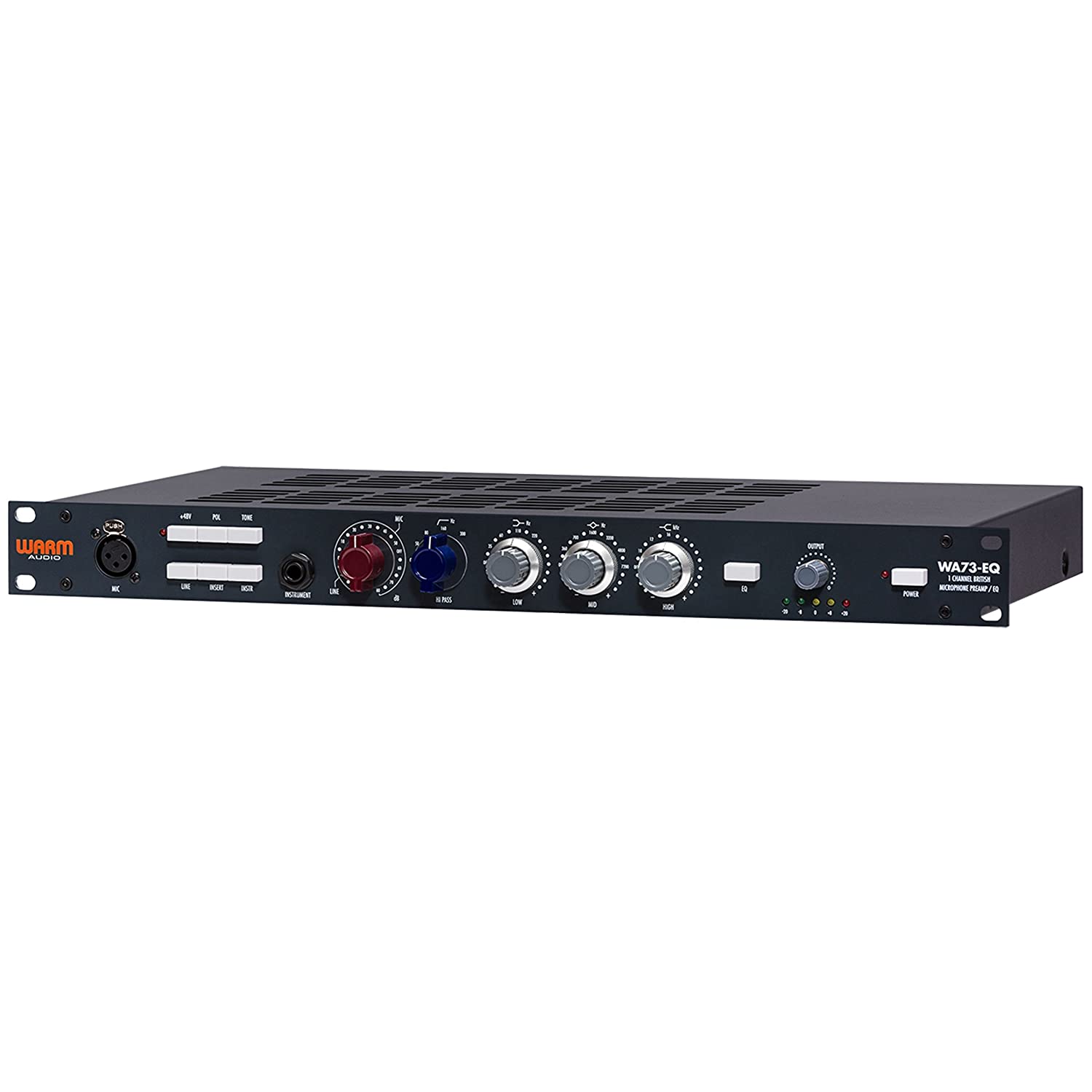

Warm Audio WA73-EQ Microphone Preamp EQ

Rs. 89,431.00 Rs. 84,959.00

Inclusive of all GST

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here
Details

SINGLE CHANNEL, CLASS A, '73-STYLE BRITISH MICROPHONE PREAMP WITH EQ

UK MADE CARNHILL TRANSFORMERS

UK MADE - BLORE EDWARDS EQ DUAL-CONCENTRIC SWITCH POTENTIOMETERS

HAND WIRED, HAND ASSEMBLED

80DB OF GAIN - RESISTOR STEPPED GAIN SWITCH

FULLY DISCRETE

TONE BUTTON - CHANGES INPUT TRANSFORMER IMPEDANCE FOR VARYING TONE

POLARITY SWITCH

48V PHANTOM POWER

INDUCTOR BASED 3 BAND EQ

LOW BAND BOOST/CUT - 35, 60, 110, 220 HZ

MID BAND BOOST/CUT - 360, 700, 1600, 3200, 4800, 7200 HZ

HIGH BAND BOOST/CUT - 10, 12, 16 KHZ

ADDITIONAL HIGH BAND FREQUENCY EQ POINTS ADDED (COMPARED TO VINTAGE 1073)

4 POSITION INDUCTOR BASED HIPASS FILTER - 50, 80, 160, 300 HZ

XLR MIC INPUTS (FRONT & BACK)

LINE LEVEL TRS INPUT

TS SEND/RECEIVE INSERT JACKS

XLR & TRS LINE LEVEL OUTPUTS

DIRECT IN, INSTRUMENT INPUT

OUTPUT CONTROL

LED LEVEL INDICATION

FREQ RESPONSE 20HZ - 20KHZ +/-.5 DB

19" RACK MOUNTABLE

INTERNAL IEC 115V/230V POWER INLET
