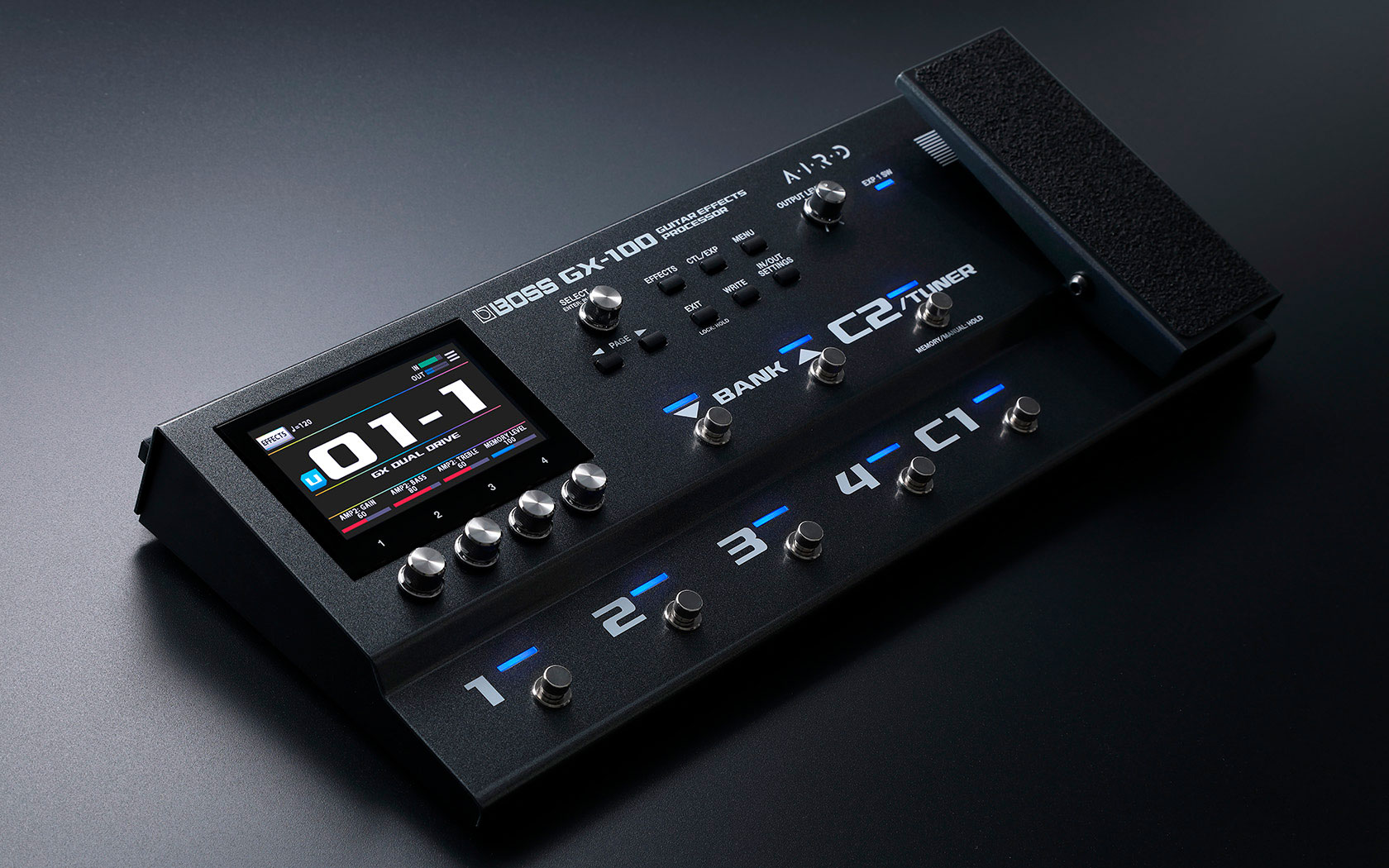

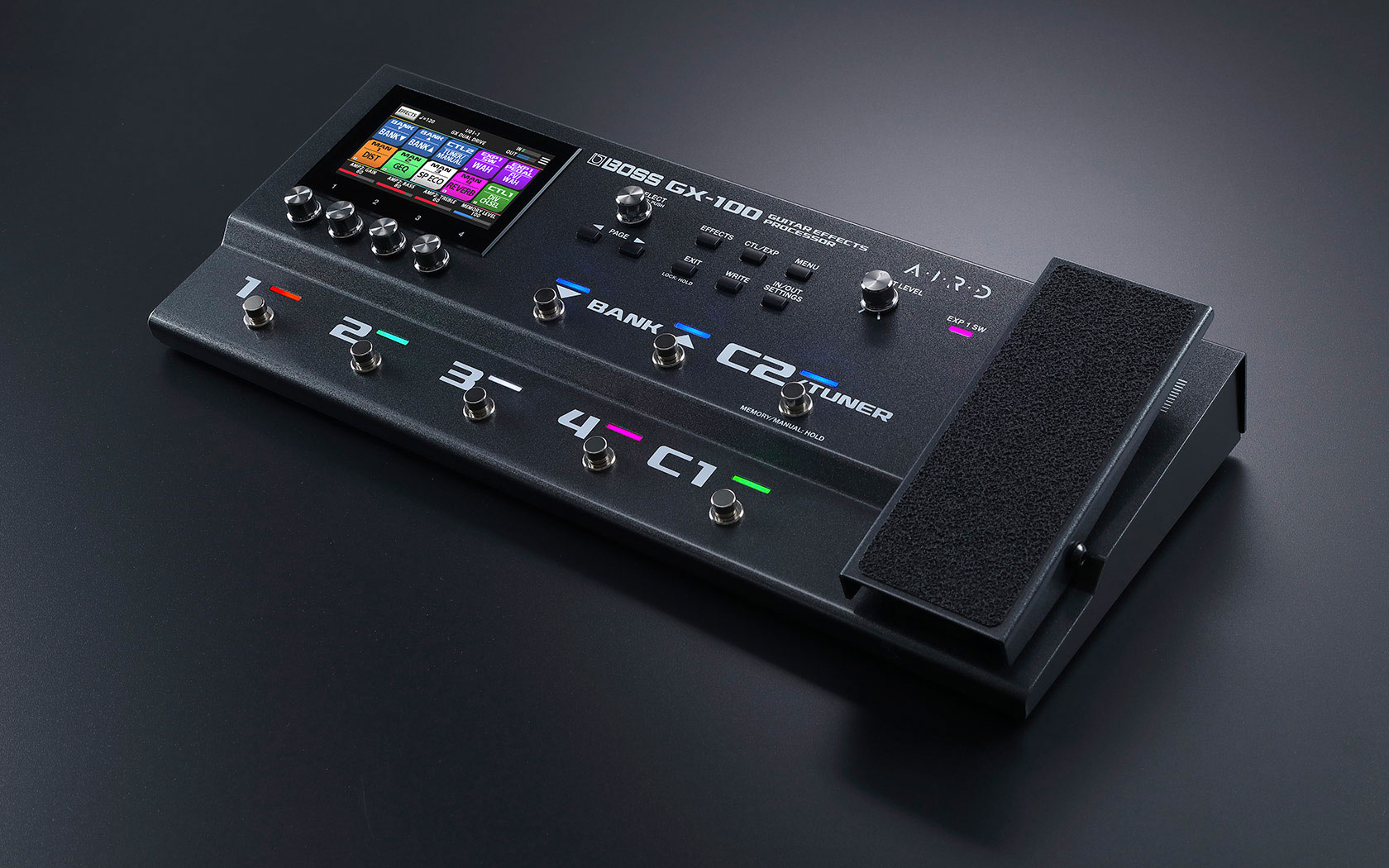

Boss GX-100 Guitar Effects Processor

Rs. 63,119.00 Rs. 56,143.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here

Details

Standard Features

Powerful, easy-to-use amp/effects processor for guitar and bass
24-bit AD/DA, 32-bit floating-point processing, and 48 kHz sampling rate
Authentic tube amplifier tone and touch response with AIRD technology
23 amplifier types and over 150 BOSS effects
Ultra-flexible amp/effect routing with 15 assignable blocks
Wide selection of onboard speaker types and support for loading WAV speaker IRs
Streamlined modern design with intuitive color touch display and rugged metal chassis
Unlimited effects control with freely assignable onboard footswitches and expression pedal with toe switch
Connect up to two footswitches or an expression pedal for expanded control
Send/return loop for external pedals or four-cable method
Control jack for remote channel switching on your amplifier
MIDI I/O jacks and multi-channel computer recording via USB
Edit sounds from your computer with BOSS Tone Studio for macOS and Windows
Optional Bluetooth® Audio MIDI Dual Adaptor allows you to edit sounds and stream audio from an iOS or Android mobile device

Description

SPECIFICATIONS

Sampling Frequency

48 kHz

AD Conversion

24 bits + AF method
AF method (Adaptive Focus method) This is a proprietary method from Roland & BOSS that vastly improves the signal-to-noise (SN) ratio of the AD and DA converters.

DA Conversion

24 bits

Processing

32-bit floating point

Effects

154 Types

Maximum Number of Effects

15+3 (DIVIDER/MIXER, SEND/RETURN, PHRASE LOOP)
*depending on the circumstances

Memories

200 (User) + 100 (Preset)

Phrase Loop

38 sec. (MONO)
19 sec. (STEREO)

Tuner Internal Detection

+/-0.1 cent

Nominal Input Level

INPUT: -10 dBu
RETURN: -10 dBu

Maximum Input Level

INPUT: +18 dBu
RETURN1: +8 dBu

Input Impedance

INPUT: 1 M ohm
RETURN: 1 M ohm

Nominal Output Level

OUTPUT (L/MONO, R): -10 dBu
PHONES: -10 dBu
SEND: -10 dBu

Output Impedance

OUTPUT (L/MONO, R): 1 k ohm
PHONES: 44 ohms
SEND: 1 k ohm

Recommended Load Impedance

OUTPUT (L/MONO, R): 10 k ohms or greater
PHONES: 44 ohms or greater
SEND: 10 k ohms or greater

Controls

BANK DOWN switch, BANK UP switch, CTL1 switch, CTL2/TUNER switch, 1--4 switches, POWER switch, EXP1 switch, GND LIFT switch

EFFECTS button, CTL/EXP button, MENU button, EXIT button, WRITE button, IN/OUT SETTINGS button, PAGE button,1--4 knobs

SELECT knob, OUTPUT LEVEL knob, EXP1 pedal

Display

Color Graphic LCD (480 x 272 dots) Touch screen

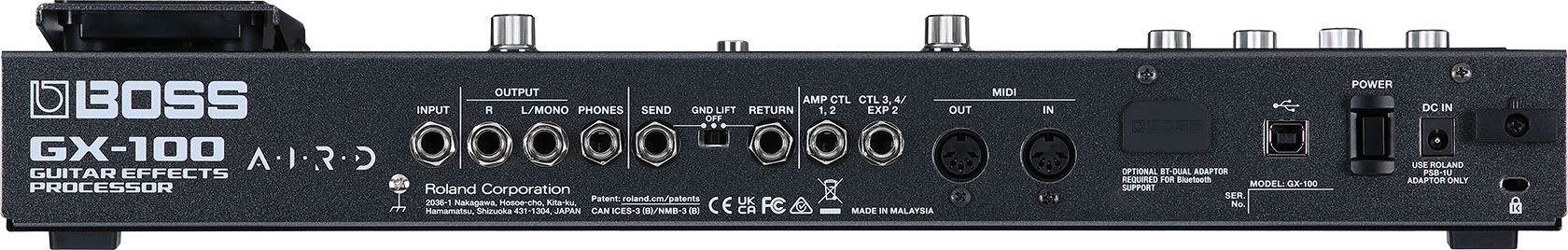

Connectors

INPUT jack, OUTPUT (L/MONO, R) jacks, SEND jack, RETURN jack: 1/4-inch phone type
PHONES jack: Stereo 1/4-inch phone type
CTL3, 4/EXP2 jack, AMP CTL1, 2 jack: 1/4-inch TRS phone type
MIDI (IN, OUT) connectors
USB COMPUTER port: USB B type
Bluetooth ADAPTOR connector: Dedicated connector
DC IN jack

Power Supply

AC adaptor

Current Draw

1.2 A

Accessories

AC adaptor (PSB-1U + AC Cord Set)
Owner's manual
Leaflet "USING THE UNIT SAFELY"

Options (sold separately)

Footswitch: FS-5U, FS-5L, FS-6, FS-7
Expression Pedal: EV-30, FV-500L, FV-500H, Roland EV-5
Bluetooth(R) Audio MIDI Dual Adaptor: BT-DUAL
