BT-1 Bar Trigger Pad

Description

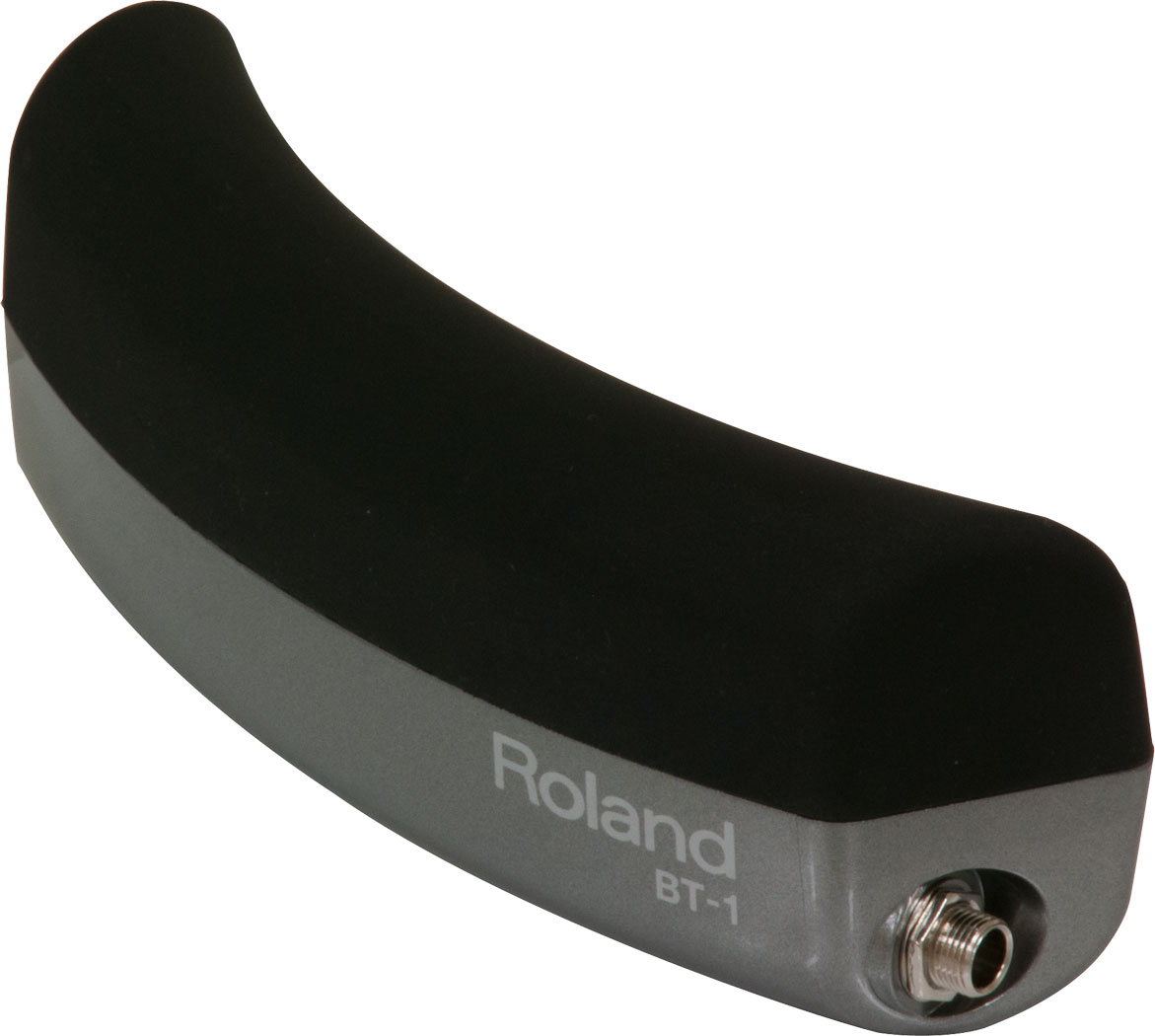

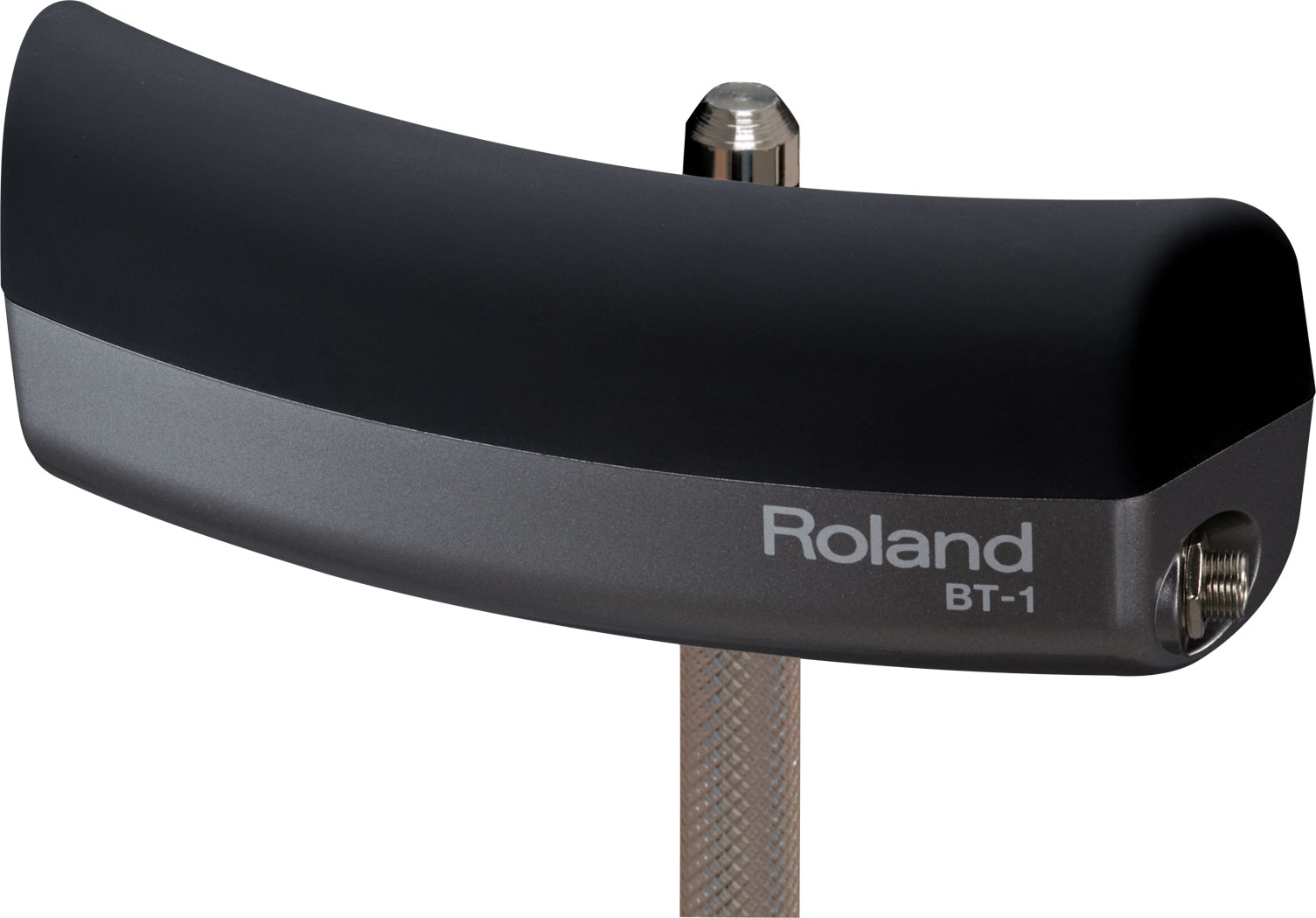

BT-1 Bar Trigger Pad

VERSATILE ADD-ON TRIGGER PAD FOR V-PADS AND ACOUSTIC DRUMS

Achieving a consistent acoustic drum sound from gig to gig is important. Many things can affect the sound; the heads, tuning, the mics, PA, even the room. Reinforcing the acoustic drum sound with electronic samples can help it cut through the mix and boost the sonic frequencies for the right kit sound, every time.Hybrid drumming combines technology with acoustic drums so you can reinforce and complement your acoustic drum sound by adding electronic sounds. More drum sounds, improved sound quality, higher production values for your performance—with hybrid... the possibilities are endless.The compact and affordable BT-1 Bar Trigger Pad makes it easy to add electronic triggering to any drum kit. With a curved shape that mounts on the side of a V-Drums V-Pad or acoustic drum, it provides convenient playing access without disturbing your existing kit layout.The BT-1 is great not only for playing sounds in a V-Drums module or SPD-series percussion pad, but also for convenient control of a variety of functions like start/stop of backing songs and phrase loops, and much more.

Specification

Trigger

1

Connector

OUTPUT jack (Stereo 1/4" phone type)

Accessories

Owner's manual
Attachment
Attachment bolt
Spacer
Connection cable (stereo

Supported V-Drums pads

PD-128S
PD-128
PD-108
PD-125
PD-105
PDX-100
PD-85

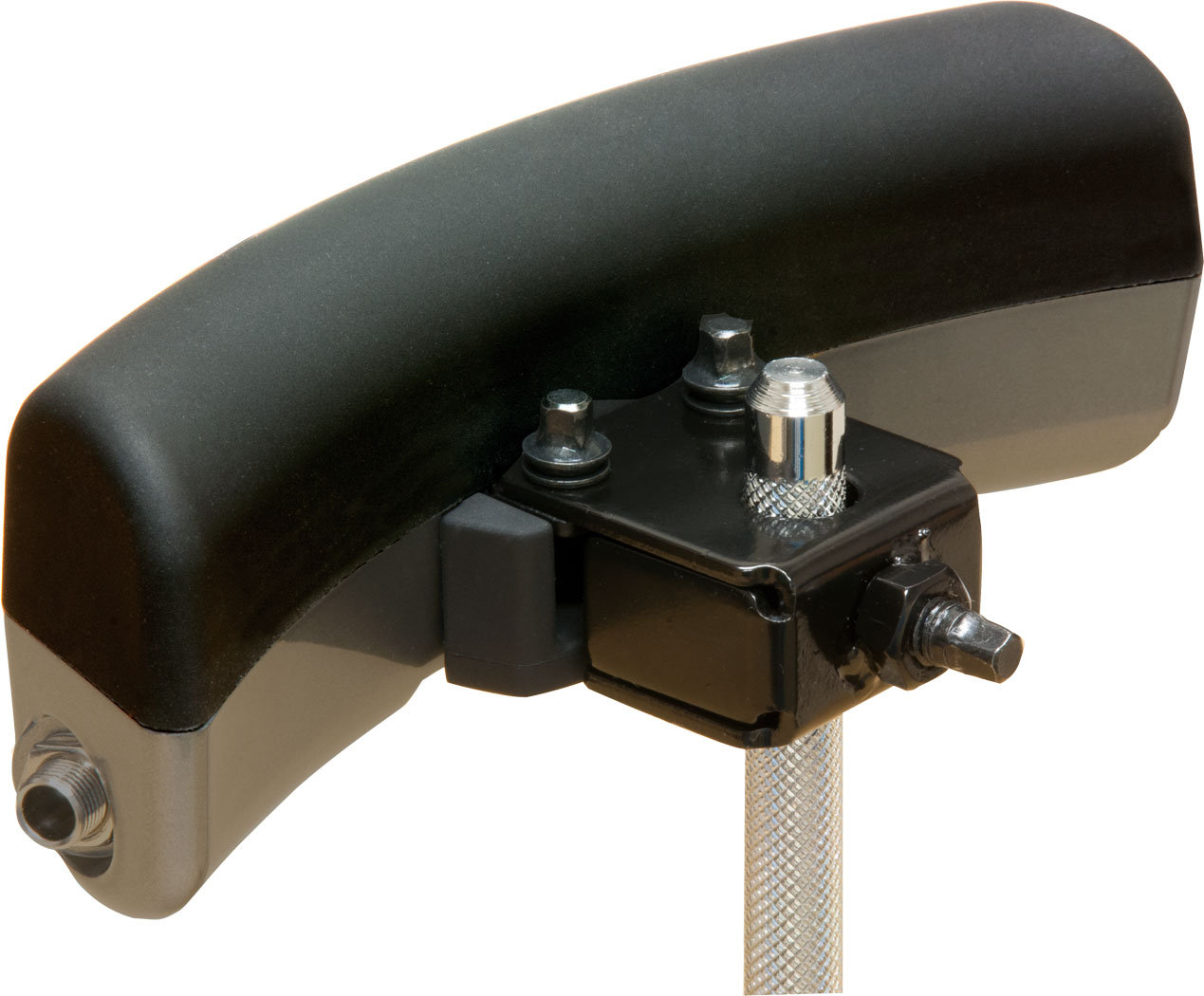

Acceptable rod diameters

8.0?12.5 mm
(3/8?1/2 inch)

Options (sold separately)

Pad Mount (MDH series)

SIZE AND WEIGHT

Width

170 mm
6-3/4 inches

Depth

53 mm
2-1/8 inches

Height

60 mm
2-6/16 inches

Weight

300 g
0 lbs. 11 oz.
