dB Technologies VIO X15

Rs. 215,784.00 Rs. 204,730.00

Inclusive of all GST

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here
Details

Technical Data

Speaker Type

2 Way Active Loudspeaker

Acoustical data

Frequency Response [-10dB]

55 - 22.000 Hz

Frequency Response [-6dB]

72 - 21.000 Hz

Max SPL

133.5 dB

HF

1x 1.4”, 2.5" Neodymium

LF

1x 15”, 3" Neodymium

Directivity

60° x 40°

Horn

Rotatable Horn

Amplifier

Amplifier

900 W RMS Class-D Digipro® G3

Cooling

Class-DConvection

Power Supply

Auto-range SMPS

Processor

Controller

DSP 28/56 bit

AD/DA Converter

24 bit/48 kHz

Limiter

Peak, RMS, Thermal

Processing

FIR Linear Phase Filters

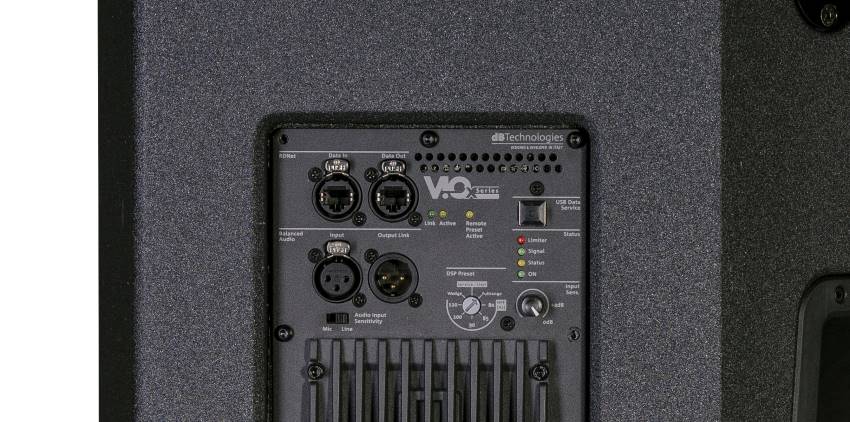

Input

Signal Input

1 x XLR balanced, 1 x RJ45 Link (RDNet)

Signal Output

1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket

1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out

Controles

1x Rotary Encoder (8x EQ, HPF presets)
1x Input sensitivity potentiometer
1x Mic / line switch

Special Features

Opto-isolated floating pre-amp

Mechanics

Housing

Wooden Cabinet, Polyurea painting

Handles

1x (top), 2x (side)

Wedge Angle

Monitor Use 50°

Rigging points

12x M10 Thread + 4x Fast lock pins

Pole Mount

Ø36 mm

Width

400 mm (15.74 in)

Height

750 mm (29.52 in)

Depth

475 mm (18.7 in)

Weight

25.4 kg (55.99 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
