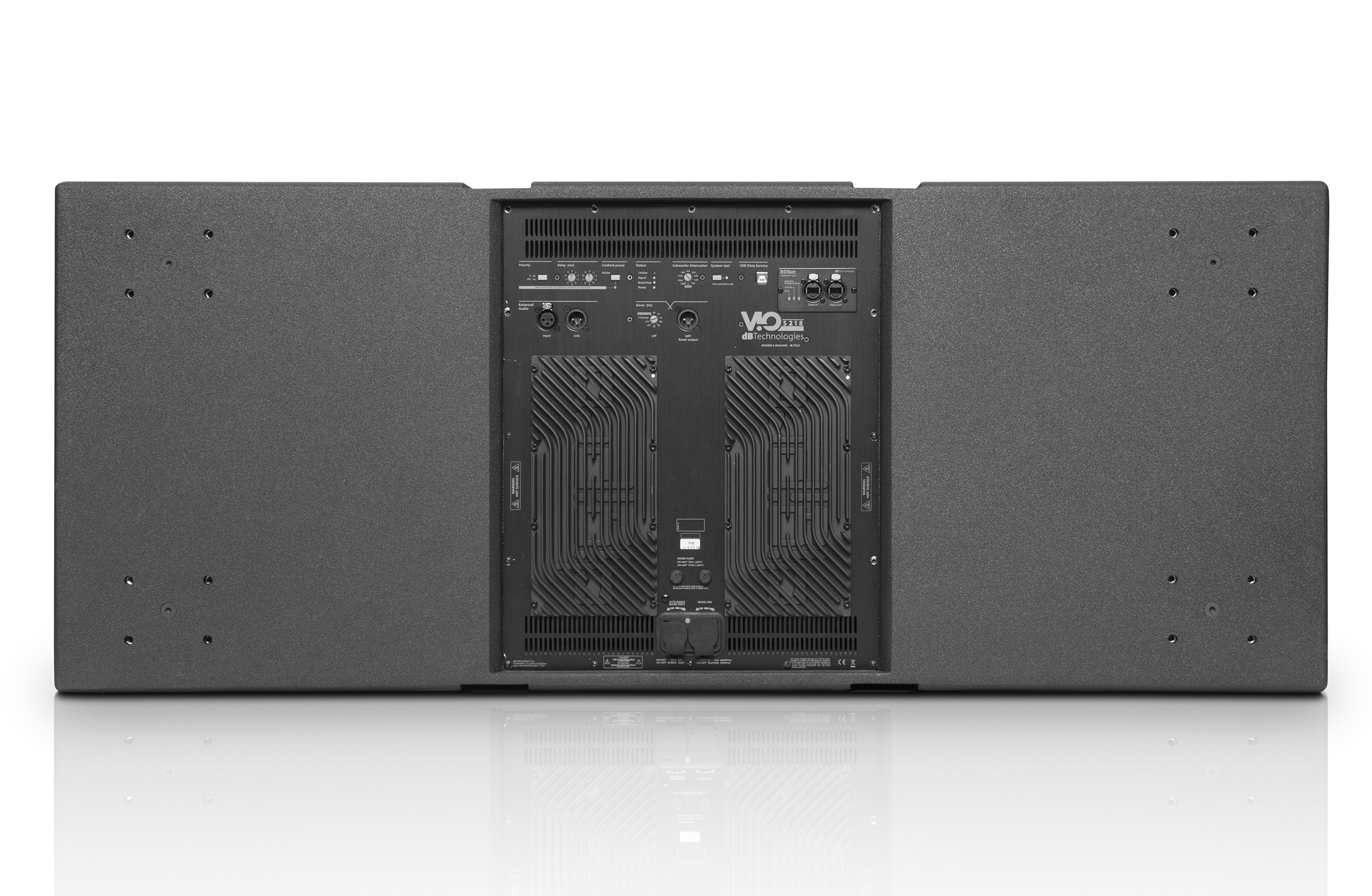

dB Technologies VIO S218
Inclusive of all GST
TECHNICAL
SPECIFICATIONS
TECHNICAL DATA
Speaker Type
Active Bassreflex subwoofer
ACOUSTICAL DATA
Frequency Response [- 10 dB]
27 Hz (HPF)
Frequency Response [- 6 dB]
28 Hz to cut frequency (Xover dependent)
Max SPL
143 dB
LF
2x18” Neodymium
Voice Coil LF
4”
Directivity
Omnidirectional
AMPLIFIER
Amplifier
3200 W RMS [2x 1600 W RMS Class-D Digipro® G4]
Cooling
Passive convection, internal fan
Power Supply
Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
PROCESSOR
Controller
DSP 32 bit
AD/DA Converter
24 bit/96 kHz
Limiter
Peak, RMS, Thermal
Delay Option
0 - 9.9 ms internal | steps of 0.1 ms [on-board]
Crossover Frequency LF-HF
Selectable 60-110 Hz + Full Range (8 steps)
LF-Xover out slope
24 dB/Octave
INPUT
Signal Input
1 x XLR balanced, 1 x RJ45 Link (RDNet)
Signal Output
1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x Input Attenuation Rotary Encoder
2x Delay Rotary Encoder (0-9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid mode Switch
1x X-Over Frequency Rotary Encoder (8 steps)
Special Features
NFCTM and Frontal LED Identification System
380V Resistant SMPS
IPOS Intelligent Power-On Sequence
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
MECHANICS
Housing
Multiplex plywood - Polyurea painting
Handles
4x Side. Aluminium
Raincover
Included
Rigging Points
2x Pick Points on top for DRK-210 rigging frame
Width
1300 mm (51.18 in)
Height
520 mm (20.47 in)
Depth
800 mm (31.5 in)
Weight
85.6 kg (188.72 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
