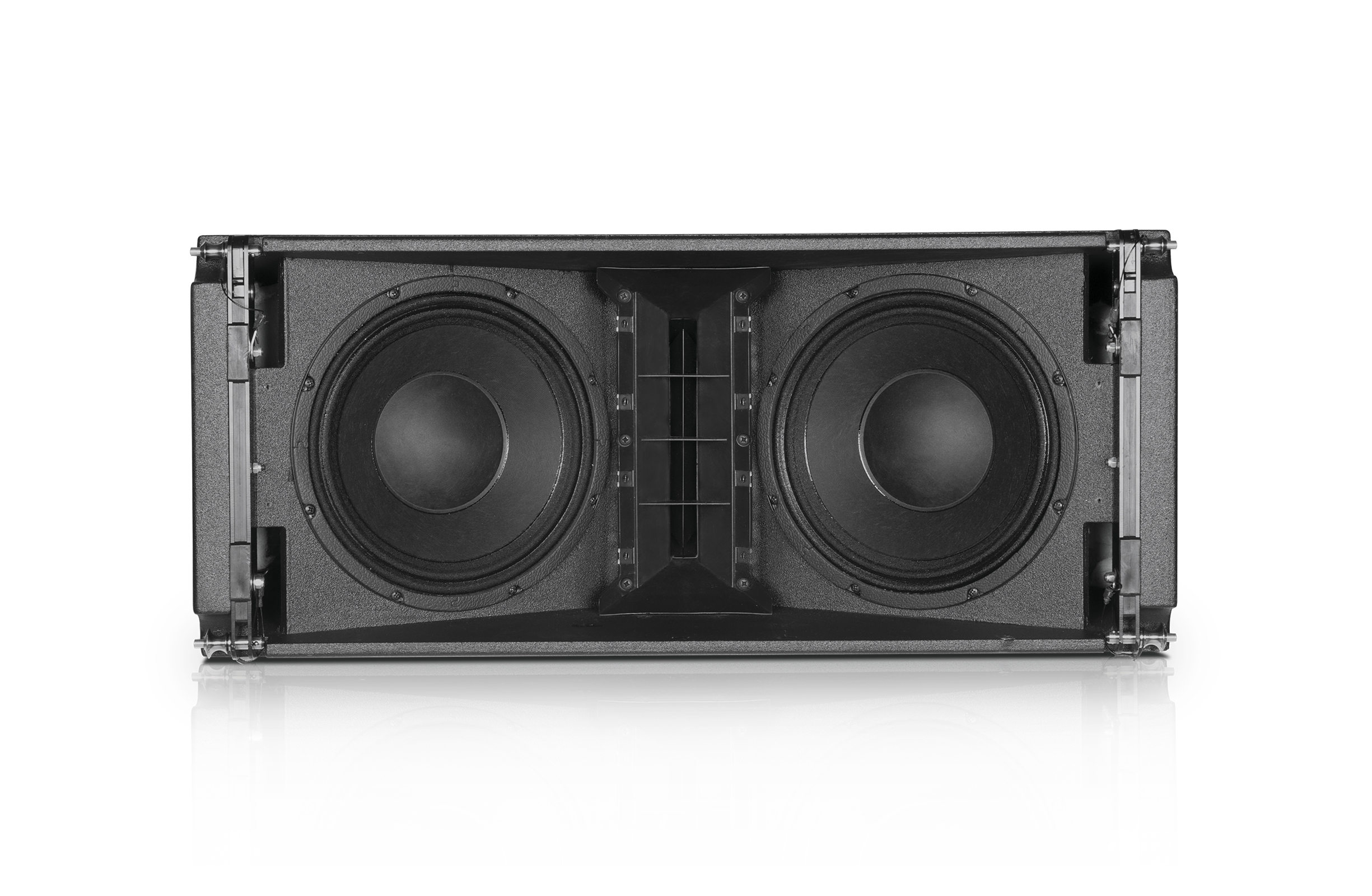

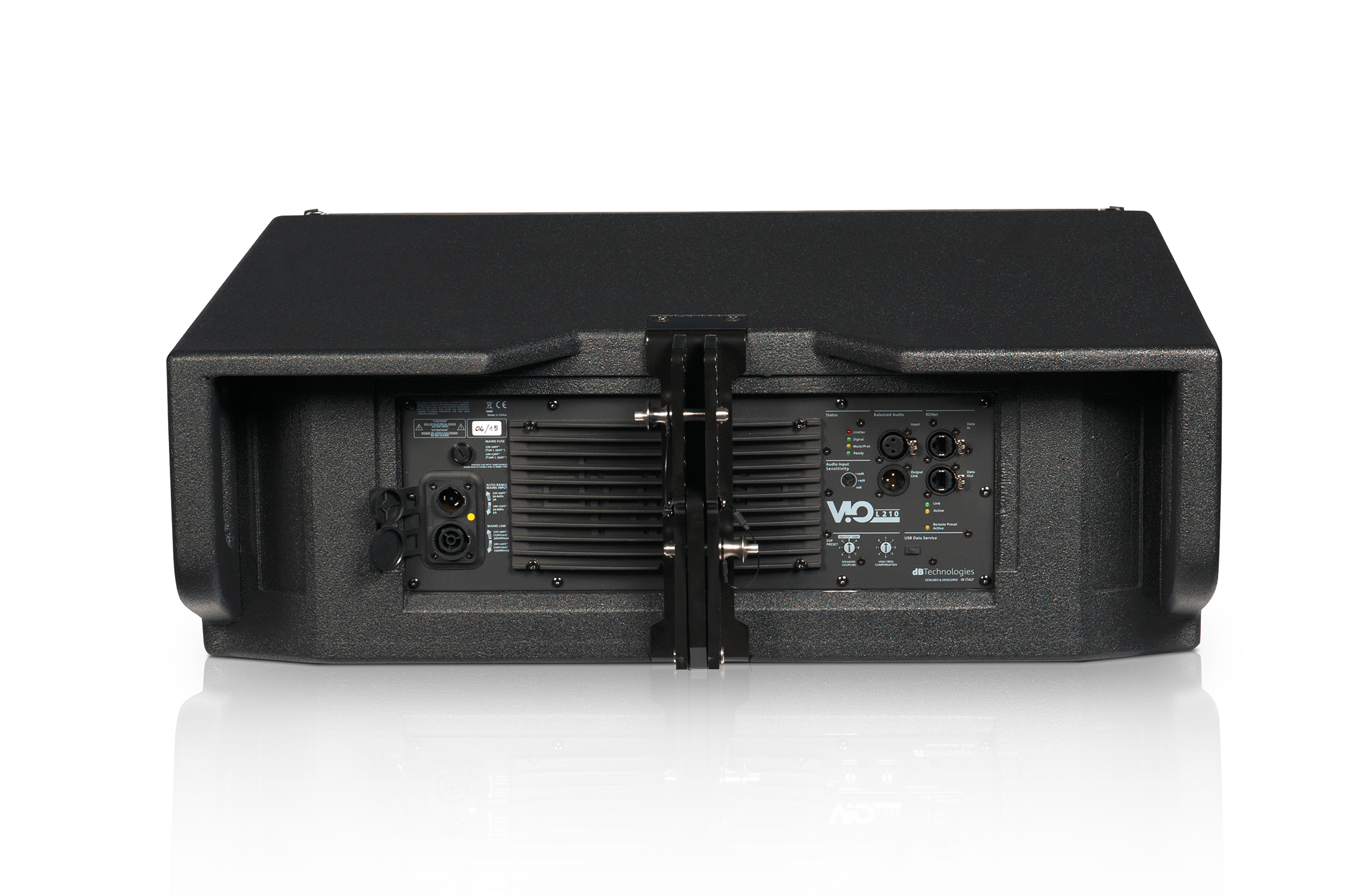

dB Technologies VIO L210

Rs. 459,620.00 Rs. 436,600.00

Inclusive of all GST

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here
Details

Technical Data

Speaker Type

2-way Active Line Array Module

Acoustical data

Usable Bandwidth [- 6 dB]

67-20,000 Hz

Frequency Response [+/- 3dB]

78-18,100 Hz

Max SPL

135 dB

HF

1x1.4"

Voice Coil HF

3"

Type HF

Neodymium, Titanium Diaphragm

LF

2x10"

Voice Coil LF

2.5"

Type LF

Neodymium Aluminium Phase Plug

Horizontal Directivity

100°

Vertical Directivity

depends on array size and configuration

Amplifier

Amp Technology

Digipro G3 [bi-amped]

Amp Class

Class-D

Power RMS

900 W

Peak Power

1800 W

Cooling

Convection

Power Supply

900 W SMPS with Auto-range PSU

Processor

Controller

DSP 56 bit

AD/DA Converter

24 bit/48 KHz

Limiter

Dual Active Multiband Peak, RMS, Thermal

Processing (filters)

FIR Linear Phase

Crossover Frequency LF-HF

950 Hz

Slope LF-HF

24 dB/Octave

Input

Signal Input

1xXLR fem, Bal.

Signal Output

1xXLR male, Bal.

Network

RDNet remote control RJ45 connector IN/OUT

Power Socket

1xPowerCon TRUE1 IN
1xPowerCon TRUE1 Out

Controls

1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1XInput Attenuation Rotary Switch

Mechanics

Housing

Multiplex Plywood
Polyurea painted

Housing Design

Trapezoidal 10°

Handles

2x side

Rain Cover

Included

Rigging Points

Integrated rigging hardware

Width

720 mm (28.35 in)

Height

320 mm (12.6 in)

Depth

520 mm (20.47 in)

Weight

28.6 Kg (63.00 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
