Samson RSX112A - 1600W 2-Way Active Loudspeaker

Rs. 55,772.00 Rs. 52,982.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here

Details

Lightweight Class D 2-way active loudspeaker
800 watts Peak/400 watts RMS of power
12" extended range low frequency driver with 2" voice coil
1" neodymium high frequency driver
Selectable Mic/Line XLR-1/4" combo input with independent volume control
XPD Wireless port for use with Samson XPD Series USB Digital Wireless Systems (sold separately)
XLR Mix output for daisy chaining additional speakers
Signal/Limit indicator
Contour switch for popular DJ/music playback EQ
4-point electronic protection circuitry
Solid polypropylene enclosure with impact-resistant design
Full perforated metal grille protects all speaker components
Three large ergonomic carry handles
Integrated 1 3/8" speaker stand mount
Floor monitor positioning options

Specifications

Output Power (1kHz): 800 watts Peak (700 LF + 100 HF), 400 watts RMS (350 LF + 50 HF)
LF Driver: 12" woofer, 2" voice coil
HF Driver: 1" neodymium tweeter, 1" voice coil
Frequency Response: 58Hz–20KHz
Max. SPL (1M): 120dB
Limiter: Optical (electronic clip)
Horn Coverage: 90°H x 60°V
Crossover Frequency: 2.5KHz at 12dB/Oct
Inputs: Balanced Mic/Line XLR-1/4" combo,XPD Wireless
Output: Balanced XLR Mix output
Contour Equalization: 100Hz and 12kHz Boost
Electronic Protection: Thermal, Overload, Analog Limiter, Compressor
Power Consumption: 420W
AC Connector: 3-pin IEC 250 VAC, 20 A male
Fuse: 110–120V T6.3A AC250V, 220–240V T3.15A AC250V
Enclosure: Polypropylene, metal grille, rubber feet, three carry handles, 1 3/8" speaker stand mount
Dimensions (L x W x H): 15" (381mm) x 12.9" (328mm) x 23.9" (607mm)
Weight: 30.4lb (13.8kg)

Description

Designed to make live sound portable and easy, the RL112A is a 2-way active loudspeaker that features a massive 800 watts of power from an advanced Class D amplifier, which keeps the overall system weight under 35 pounds. On the road or at the corner coffeehouse, the RL112A is ideal for DJs, lectures, meetings, events, as well as for the singer/songwriter or acoustic duo.

In a Class by Itself

Class D amplification provides ample power from a lightweight and efficient chassis. The unique bi-amp design hosts two separate power amps, one to drive the massive low end, and one to attain warm, smooth highs. Together, the RL112A can produce 800 Watts of Peak Power – delivering plenty of headroom in the audio signal to prevent distortion. Internal circuitry provides thermal and overload protection, a compressor, plus an optical-based limiter keeps everything running and sounding smooth.

Loud and Clear

Tight, punchy bass emanates from a 12" extended range low frequency driver; the generous 2" voice coil offers higher efficiency and maximizes heat dispersion. Up top is a 1" high frequency driver equipped with a 1" voice coil. The use of rare-earth neodymium magnets increases efficiency, providing improved clarity and intelligibility. The molded 90° x 60° high frequency horn delivers excellent high-frequency dispersion and coverage.

All Are Welcome

Channel 1 of the RL112A onboard mixer features an XLR-1/4" combo jack – complete with a gain-matching mic/line switch – to accommodate nearly any input source. Channel 2 is dedicated to receiving the signal from a Samson XPD wireless microphone (not included), making it the perfect choice for conferences, lectures, rallies, fitness classes, and entertaining. Individual level knobs set the perfect balance. The Mix Out jack (XLR) passes the combined signal along to additional equipment as you buildout your system. Switching on the Contour (EQ) circuit can enhance the sound in challenging venues.

Born to Run

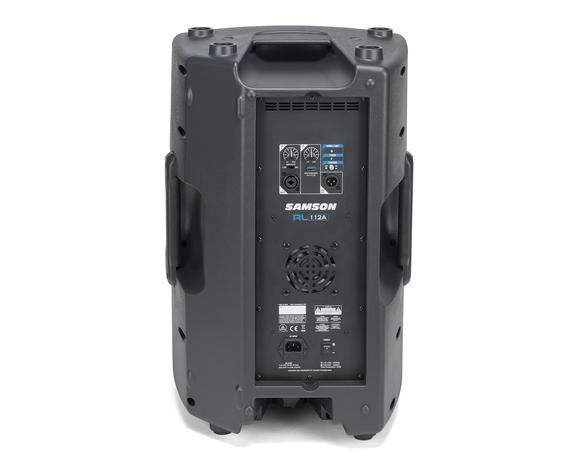

Impact-resistant polypropylene cabinets equipped with perforated metal grilles provided added protection to the RL112A speakers themselves. And its versatile design invites either vertical (front of house) or horizontal (monitor) usage. Three easy-carry handles provide easy transport and placement. A convenient 1 3/8" pole-mount socket is built right in.
