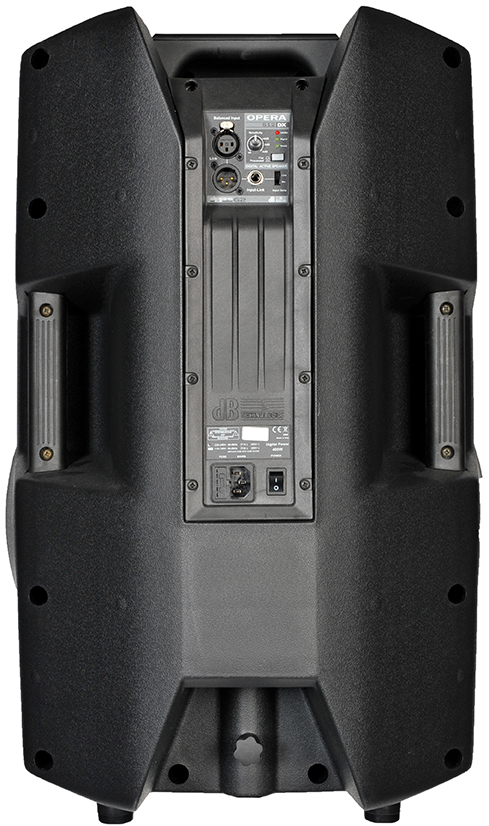

dB Technologies OPERA 512 DX

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]

59 - 20.000 Hz

Frequency Response [+/- 3dB]

70 - 19.000 Hz

Max SPL

126 dB

HF

1 "

Type HF

Compression driver

Directivity

80/65 x 60 °

Horn

Asymmetrical CD Horn

LF

12 "

Amplifier

Amp Technology

digipro®

Amp Class

Class D

Power PRG

400 Watt

Processor

Controller

DSP 24bit/48kHz

System Presets

Flat, Processed

Limiter

Dual Active
Peak, RMS, Thermal

Mechanics

Housing

Polyporpylen PP

Angles Up

Monitor use 43 °

Width

432 mm (17.28 in)

Height

655 mm (26.2 in)

Depth

353 mm (14.12 in)

Weight

15,8 kg (33.07 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
