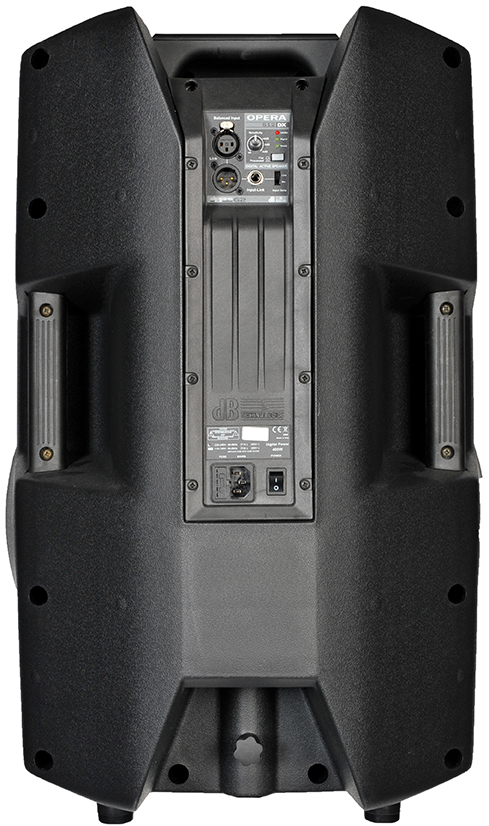

dB Technologies OPERA 512 DX
Inclusive of all GST
Technical Data
Speaker Type
2-Way Active Speaker
Acoustical data
Frequency Response [-10dB]
59 - 20.000 Hz
Frequency Response [+/- 3dB]
70 - 19.000 Hz
Max SPL
126 dB
HF
1 "
Type HF
Compression driver
Directivity
80/65 x 60 °
Horn
Asymmetrical CD Horn
LF
12 "
Amplifier
Amp Technology
digipro®
Amp Class
Class D
Power PRG
400 Watt
Processor
Controller
DSP 24bit/48kHz
System Presets
Flat, Processed
Limiter
Dual Active
Peak, RMS, Thermal
Mechanics
Housing
Polyporpylen PP
Angles Up
Monitor use 43 °
Width
432 mm (17.28 in)
Height
655 mm (26.2 in)
Depth
353 mm (14.12 in)
Weight
15,8 kg (33.07 lbs)
Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
