Boss MD-2 Mega Distortion Pedal

Description

SPECIFICATIONS

Controls                                                                                            GAIN BOOST knob
                                                                                                         DIST knob
                                                                                                         TONE/BOTTOM knob
                                                                                                         LEVEL knob
                                                                                                         Pedal switch

Indicator                                                                                            CHECK Indicator (Used for indication of check battery)

Connectors                                                                                        INPUT jack: 1/4-inch phone type
                                                                                                          OUTPUT jack: 1/4-inch phone typ

                                                                                                          DC IN jack

Power Supply                                                                                     Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
AC adaptor                                                                                          (PSA series: sold separately)

Current Draw                                                                                       18 mA

From the manufacturer

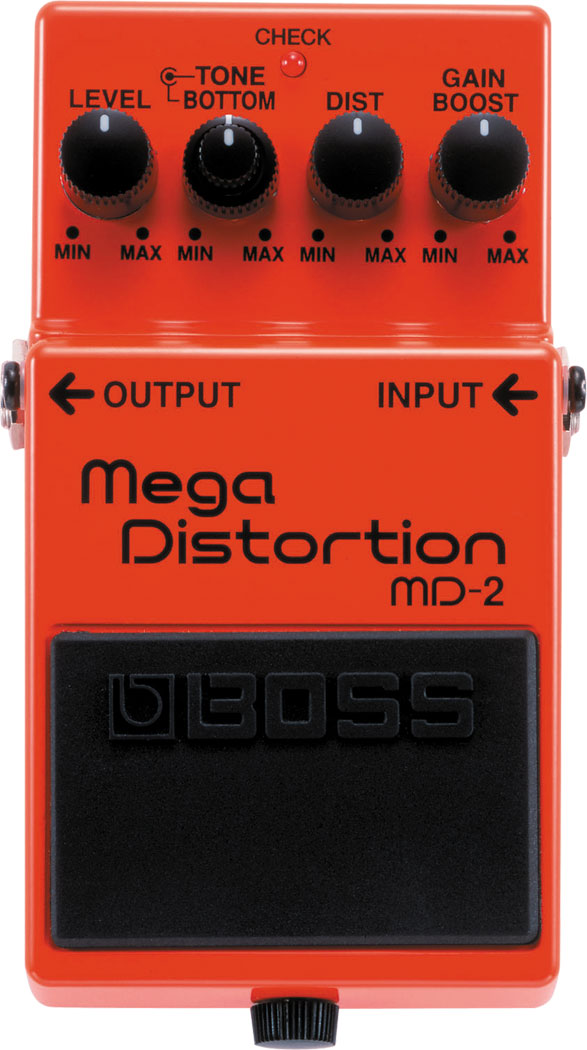

MD-2 Mega Distortion

EXTREME DISTORTION FOR EXTREME MUSIC

The MD-2 Mega distortion takes the bottom-heavy distortion sounds heard in today's new-school metal and pushes it to the extreme. The secret is a special dual-stage distortion circuit with an added gain boost-plus new Bottom and Tone controls--for crushing distortion with massive low end. Take your distortion into the future with the MD-2.

• Produces extreme, low-end distortion for modern metal and hard rock
• Gain Boost circuit creates huge distortion and sustain regardless of level
• New Bottom control for bottom-heavy distortion matched to 6- or 7-string guitar
• Tone control adjusts balance between high and low frequencies
• BOSS five-year



Specification

Nominal Input Level	-20 dBu
Input Impedance	1 M ohm
Nominal Output Level	-20 dBu
Output Impedance	1 k ohm
Recommended Load Impedance	10 k ohms or greater
Bypass	Buffered bypass
Controls	GAIN BOOST knob DIST knob TONE/BOTTOM knob LEVEL knob Pedal switch
Indicator	CHECK Indicator (Used for indication of check battery)
Connectors	INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack
Power Supply	Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately)
Current Draw	18 mA
Expected battery life under	Carbon: Approx. 19 hours Alkaline: Approx. 38 hours * These figures will vary depending on the actual conditions of use.
Accessory	Owner's manual Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information") Carbon-zinc battery (9 V, 6F22)
Options (sold separately)	AC Adaptor: PSA series
