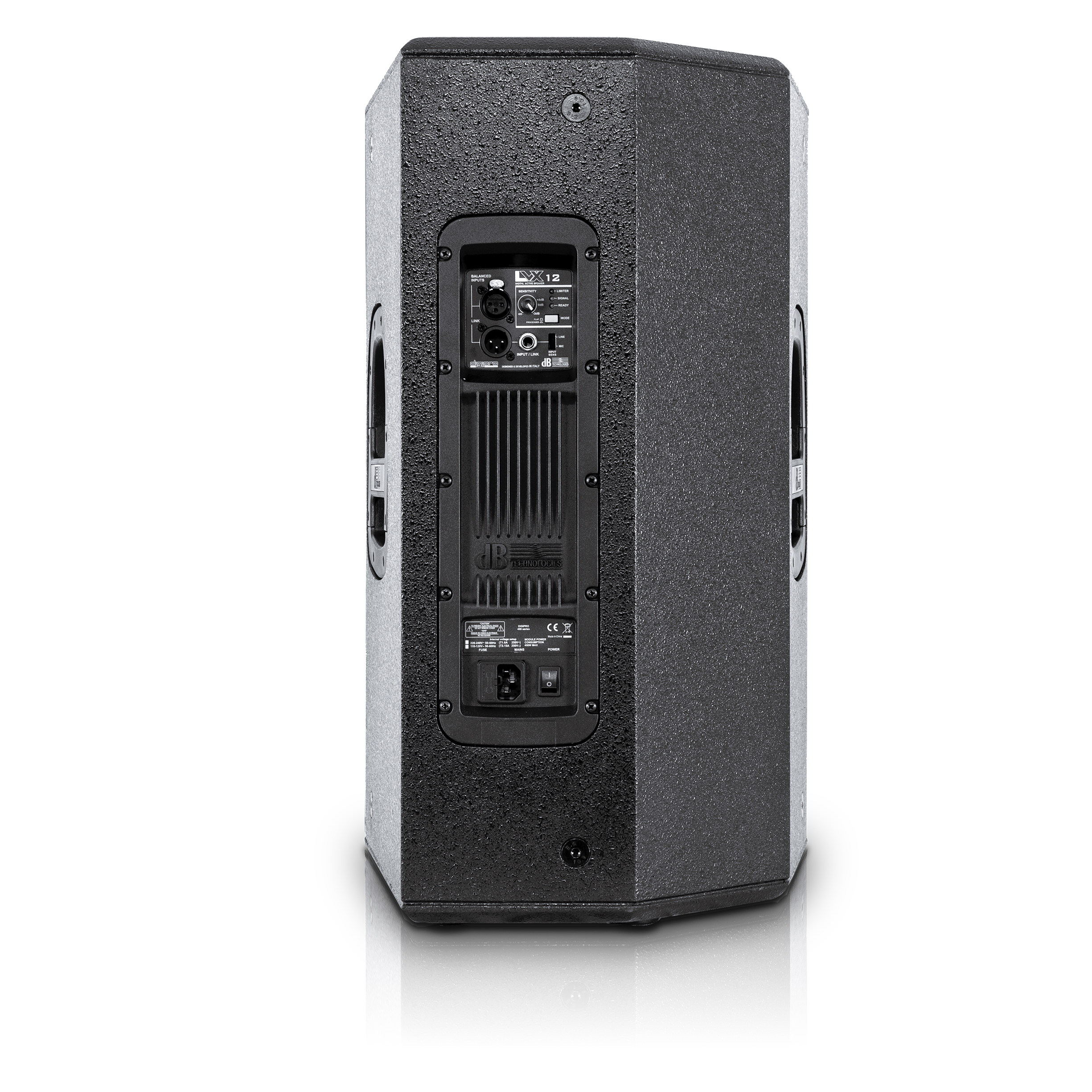

dB Technologies LVX-12

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]

55 - 20.000 Hz

Frequency Response [-6dB]

62 - 19.000 Hz

Max SPL

127 dB

HF

1"

Directivity

90 x 40°

Horn

Rotatable CD Horn

LF

12"

Amplifier

Amp Technology

Digipro® G2

Amp Class

Class-D

Peak Power

1600 W

PRG Power

800 W

Processor

Controller

DSP 24bit/48kHz

System Presets

Flat, Processed

Limiter

Dual Active Peak, RMS, Thermal

Crossover Frequency LF-HF

1800 Hz

Slope LF-HF

24 dB/Octave

Mechanics

Housing

Multiplex

Angles Up

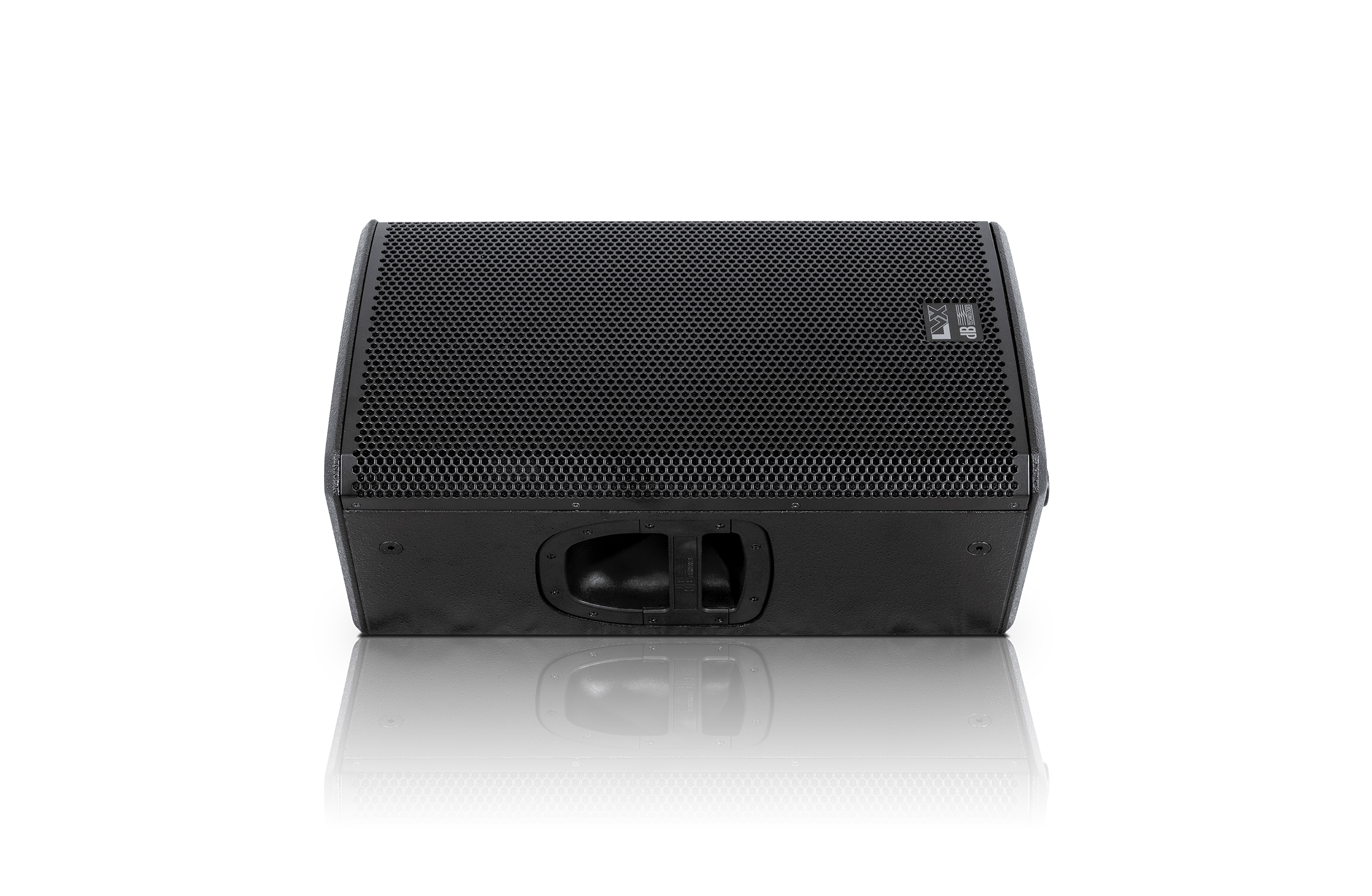

Monitor use 45°

Handles

3 (1x top side, 1x side)

Rigging points

12 x M10

Pole Mount

D36 mm

Width

360 mm (14.17 in)

Height

610 mm (24 in)

Depth

360 mm (14.17 in)

Weight

17 kg (37.5 lbs)

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
