Electro-Voice Portable column system EVOLVE 50

Rs. 183,589.00 Rs. 174,404.00

Inclusive of all GST

( 0 Reviews )

Add to Cart Add to Wishlist

Sold by Rivera Digitec India Pvt Ltd. (Shipping Same Day)
See some FAQs here

Details

SPECIFICATIONS

Frequency response (-3 dB)¹	43 Hz-20 KHz
Frequency range (-10 dB)¹	37 Hz-20 KHz
Maximum SPL²	127 dB
SPECIFICATIONS

Coverage (H x V)	120° x 40°
Amplifier rating	1000 W
LF channel rating	500 W
HF channel rating	500 W
Crossover frequency	200 Hz
Connectors	2x XLR/TRS Combo Jack Input 1x 3.5 mm Input 1x Stereo RCA Input 1x Wireless Bluetooth® Audio Input 1x XLR THRU Output 1x XLR MIX OUT Output
Enclosure	Sub: 15 mm plywood Column: Composite Pole: Aluminum
Grille	Steel with black or white powder coat
Color	Black or white
Dimensions (HxWxD): mm (in)	Sub: 530 x 345 x 471 (20.9 x 13.6 x 18.5) Column: 825 x 102 x 172 (32.5 x 4.0 x 6.9) Pole: 929 x 48.5 x 55 (36.6 x 1.9 x 2.2)
Net weight	Sub: 44.66 lb (20.3 kg) Column: 10.34 lb (4.7 kg) Pole: 2.75 lb (1.25 kg) Sub cover: 0.9 lb (0.4 kg) Bag for column and pole: 1.87 (0.85 kg)
Shipping weight	Sub box: 50.71 lb (23 kg) Column box: 18.30 lb (8.3 kg)
Power consumption³	100-240 V AC, 50-60 Hz, 1.5-0.6 A

¹ Full-space measurement using music DSP preset.
² Maximum SPL is measured at 1 m using broadband pink noise at maximum output.
³ Current rating is 1/8 power.

Description

EVOLVE 50

Portable column system

Clean, Compact Design — Built to Blend In
Easy Transport & Setup
Professional PA Performance
Wide, Even Coverage
QuickSmart DSP
Wireless Control & Monitoring
High‑Quality Bluetooth* Audio
Now Available in White

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.

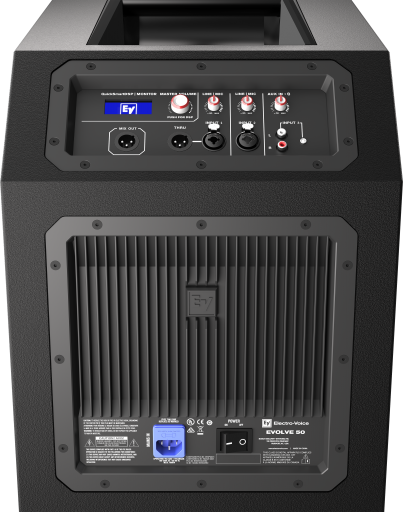

The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12” subwoofer capable of a functional frequency output down to 37 Hz.

The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.

The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.

The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High resolution Bluetooth audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment.

Bluetooth is available in select countries.
