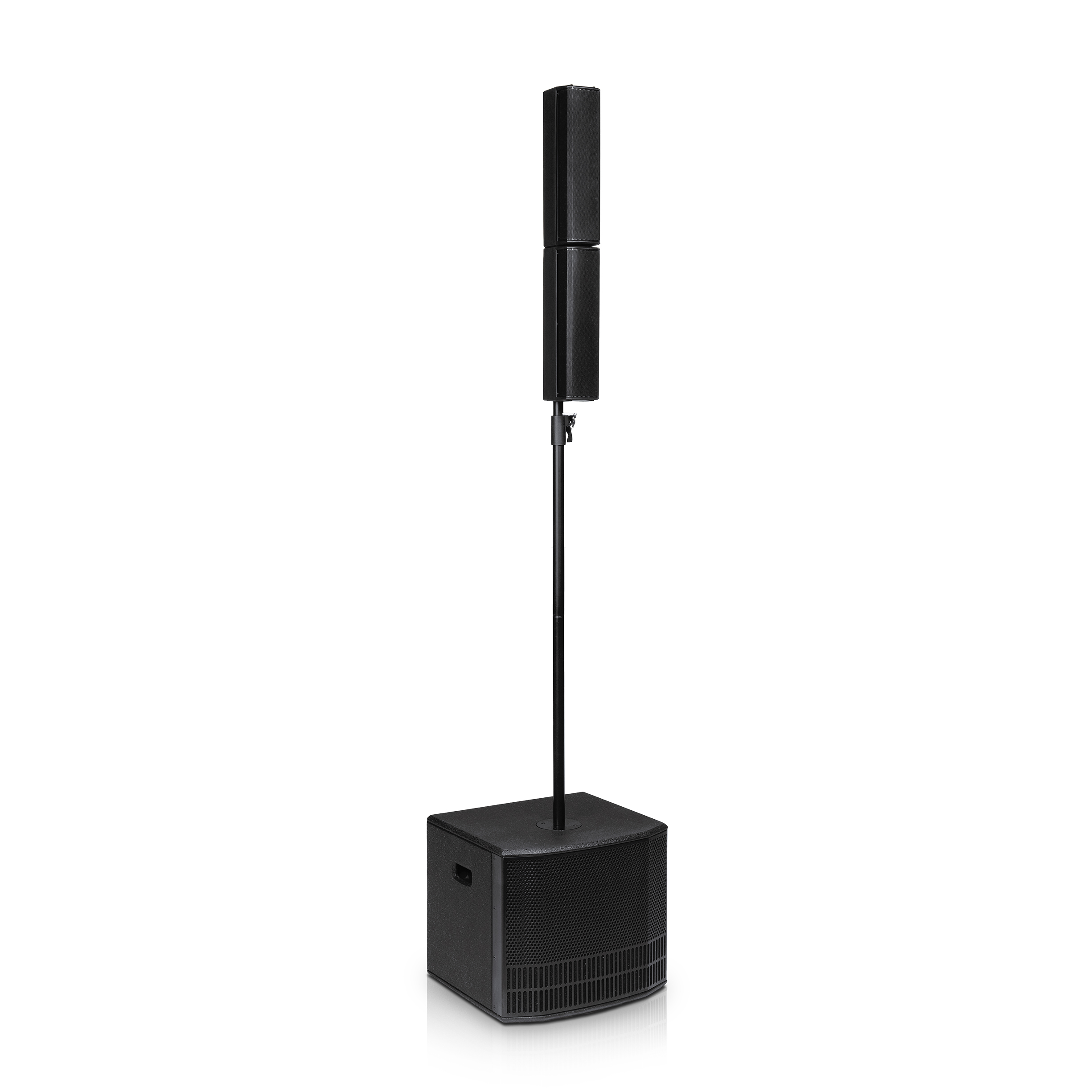

dB Technologies ES 503 - Column PA Stereo System

Description



Technical Data

Speaker Type

3-amped Stereo System with
two full-range tops and one subwoofer

Acoustical data

Frequency Response [-10dB]

37 - 15.000 Hz

Max SPL

121 dB

MF - HF

8x 3"

Type MF - HF

Neodymium

LF

12"

Directivity

95x65°

Amplifier

Amp Technology

Digipro® G3

Amp Class

Class-D

Power Amp Peak

1000 W

Processor

Controller

DSP 24 Bit/48 kHz

System Presets

Factory presets + User defined

Limiter

Dual Active, Peak, RMS, Thermal

Crossover Frequency LF-HF

206 Hz

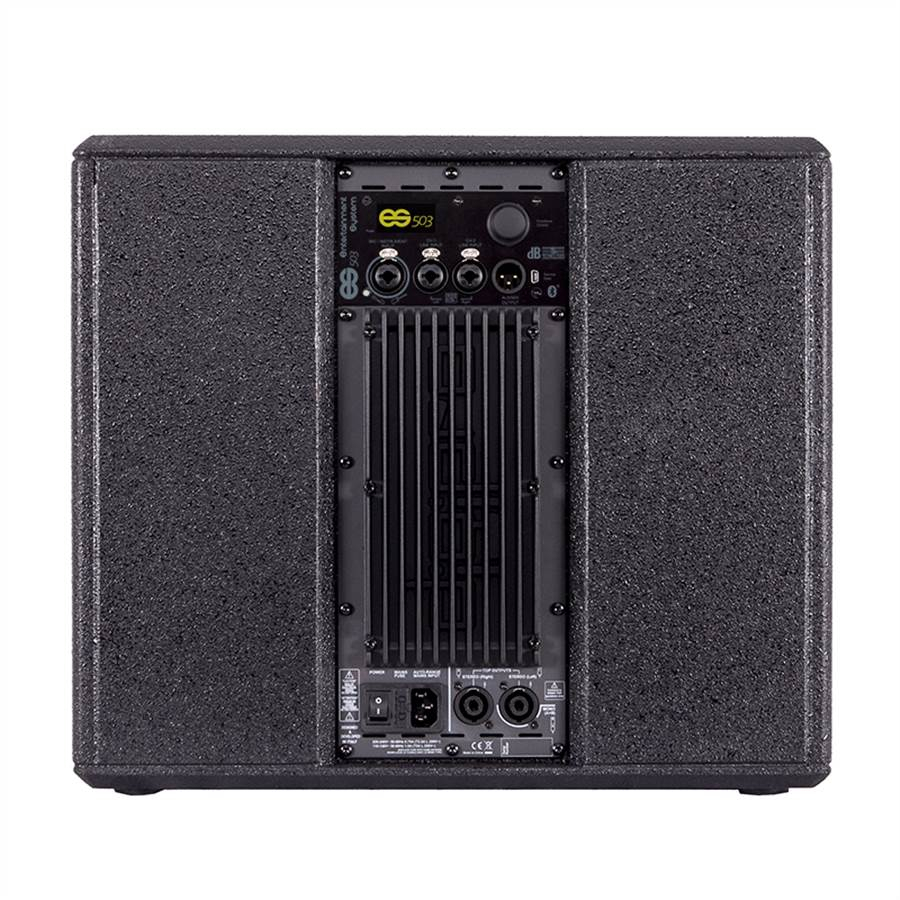

Input

Mic/Instrument Channel

1x Combo (XLR/Jack) balanced/unbalanced input

Line Channels

2x Combo (XLR/Jack) balanced/unbalanced inputs

Media Channel

1x Bluetooth® built-in receiver

Mix Output

1x XLR balanced output

Mechanics

Housing (Subwoofer)

15mm Black Painted Plywood

Housing (Tops)

Polypropylene PP

Handles

2x lateral side (Subwoofer)

Width (Top)

95 mm (3.74 in)

Height (Top)

360 mm (13.98 in)

Depth (Top)

137 mm (5.39 in)

Width (Subwoofer)

465 mm (18.3 in)

Height (Subwoofer)

400 mm (15.7 in)

Depth (Subwoofer)

430 mm (16.9 in)

Weight (Top)

1.9Kg – 4.19lbs.

Weight (Subwoofer)

16.4Kg – 36.16lbs.

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
