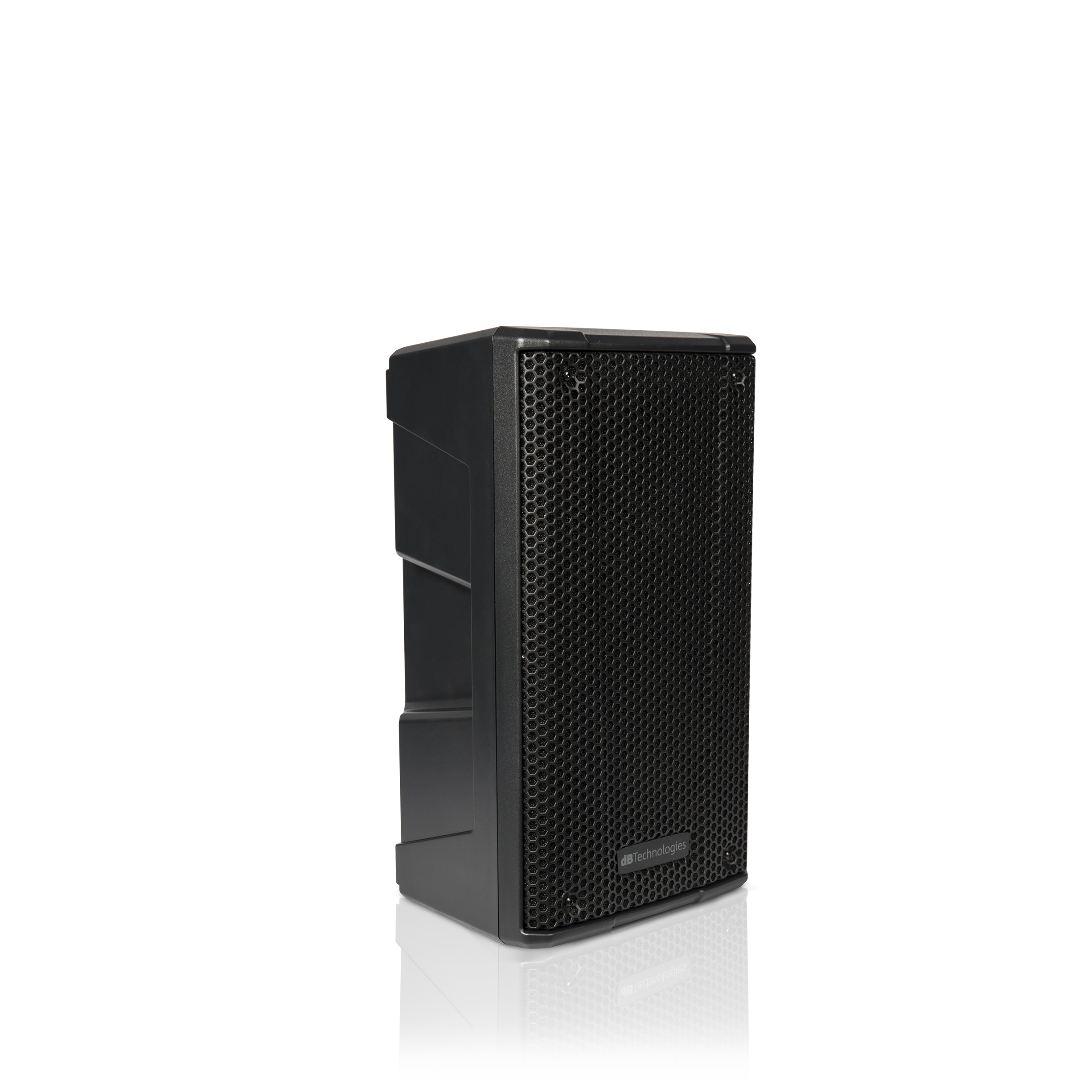

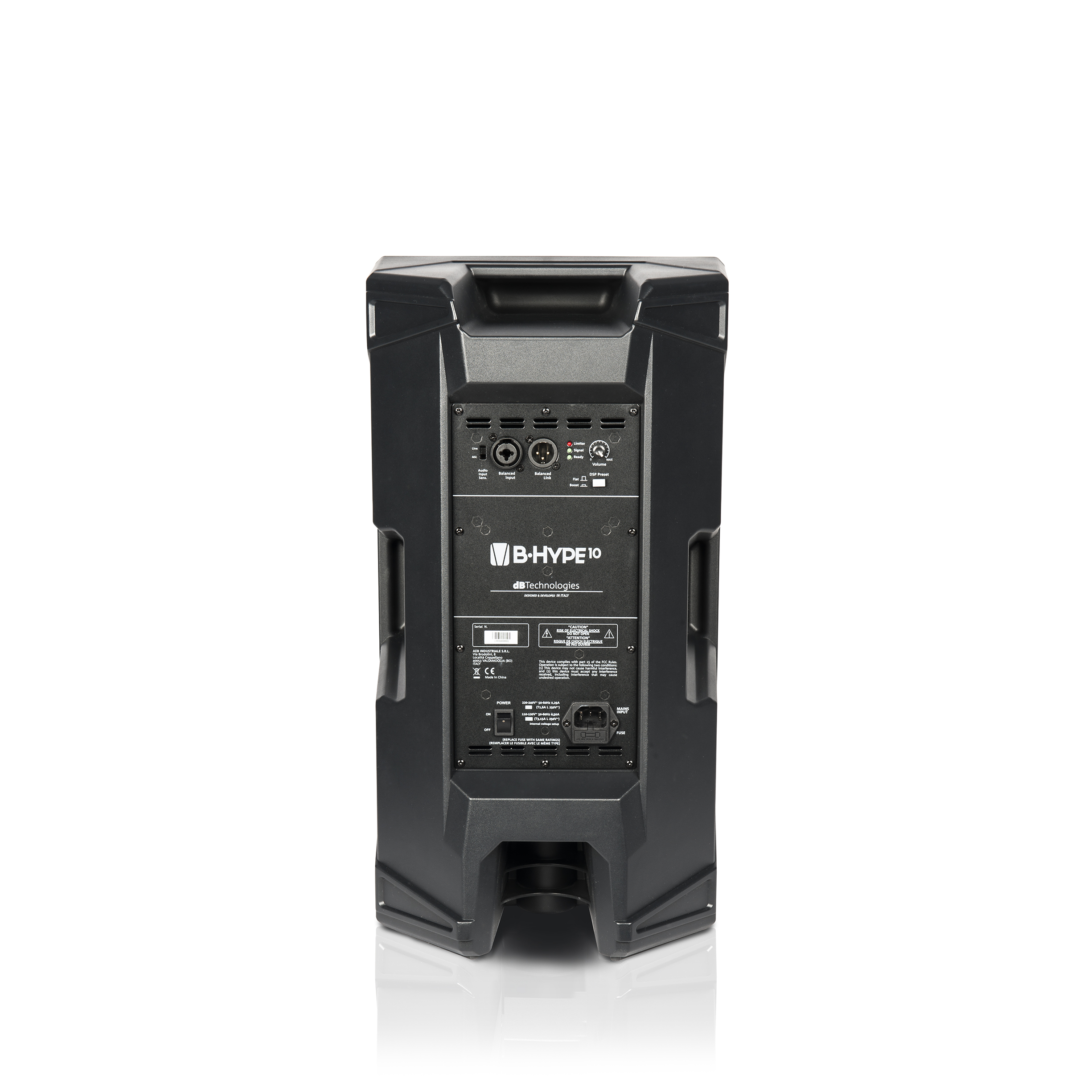

Db Technologies B-HYPE 10

Technical Data

Speaker Type

2-Way Active Speaker

Acoustical data

Usable Bandwidth [-10dB]

55 - 20.000 Hz

Frequency Response [-6 dB]

62 - 19.600 Hz

Max SPL

121 dB

Type HF

Compression Driver

HF voice coil

1 "

LF

10 "

LF voice coil

1.5 "

Crossover Frequency

2300 Hz (24 dB/oct.)

Horizontal Dispersion

asymmetrical 85° up / 120°down

Vertical Dispersion

85° (+25/ -60°)

Amplifier

Amp Technology

Custom Made

Amp Class

Class D - Passice cooling (convection)

Power Peak

260 W

Processor

Controller

DSP 28/56 bit- 48 kHz

Limiter

Peak, RMS, Thermal

Controls

Volume, Audio Input Sensitivity, DSP Preset

Input

Main Connection

VDE

Signal Input

Balanced 1xCombo IN (MIC/LINE)

SIGNAL Out

(Balanced) 1xXLR OUT (LINK)

Mechanics

Housing

Polypropylene

Grille

Full Metal Grille

Handles

3 (2 on side 1 on top)

Pole Mount

36 mm

Width

295 mm (11.61 in)

Height

544 mm (21.42 in)

Depth

283 mm (11.14 in)

Weight

9 kg (19.84 lbs)

Angles Up

Double wedge angle 45°

Notes: The data are not binding; dBTechnologies reserves the right to modify the data at any time and without previous notice.
